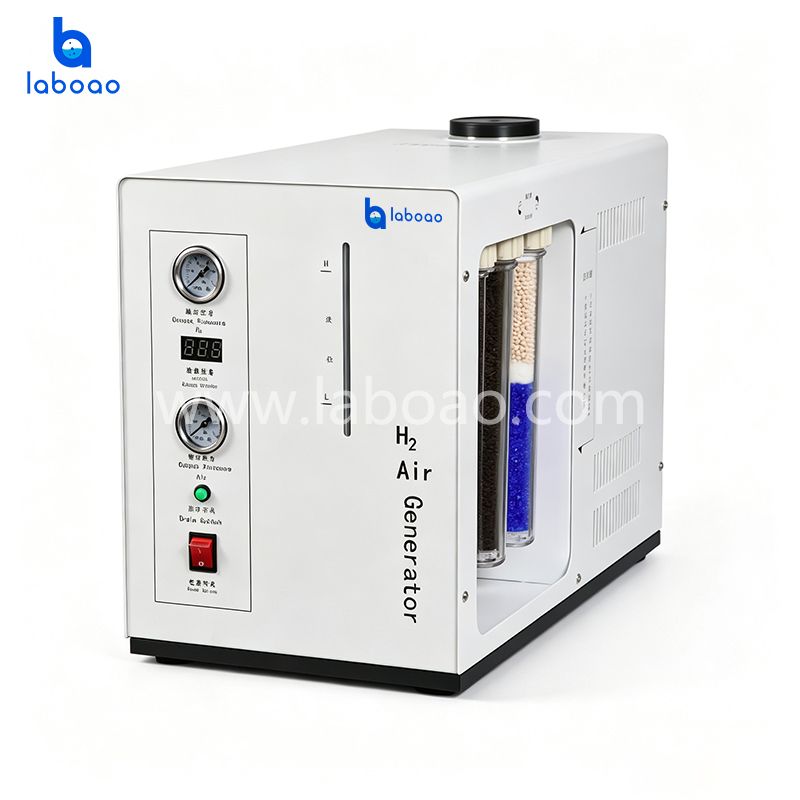

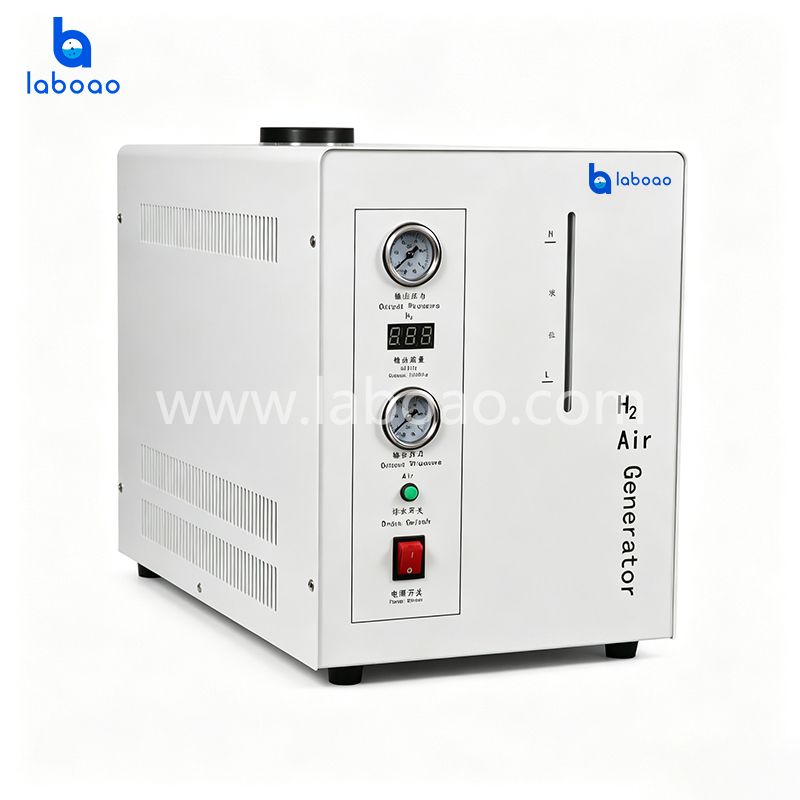

The integrated hydrogen and air generator combines a hydrogen generator and an air generator into a single unit, simultaneously supplying high-purity hydrogen and clean air. It provides fuel and oxidant gases for detectors such as FID and FPD in gas chromatographs, offering a space-saving and user-friendly solution.
1. The integrated hydrogen and air generator combines hydrogen and air generation capabilities into a single unit.
2.It features a stainless steel gas storage tank and utilizes electropolished, ultrasonically cleaned, and passivated stainless steel tubing.
3.A built-in, low-pressure, oil-free, and quiet air compressor ensures a quieter and more comfortable laboratory working environment.
4.Low-pressure solenoid valves enable continuous, uninterrupted operation, making the unit suitable for unattended, online applications.
Model | LHA-300 | LHA-500 |
Hydrogen output flow rate | 0–300 mL/min | 0–500mL/min |
Hydrogen output purity | 99.999% | 99.999% |
Air output flow rate | 0–3000 mL/min | 0–3000 mL/min |
Output pressure | 0–0.4 MPa | 0–0.4 MPa |
Pressure stability | ≤0.02% | ≤0.02% |
Water tank capacity and water quality requirements | Hydrogen (1200 mL), distilled water or deionized water | Hydrogen (1200 mL), distilled water or deionized water |
Operating noise | <35 dB(A) | <35 dB(A) |
Power supply | 220 V ±10%, 50–60 Hz | 220 V ±10%, 50–60 Hz |
Operating ambient temperature | 0–40°C | 0–40°C |
Operating ambient humidity | <85% | <85% |
Dimensions | 302 x 593 x 393 mm | 302 x 593 x 393 mm |
