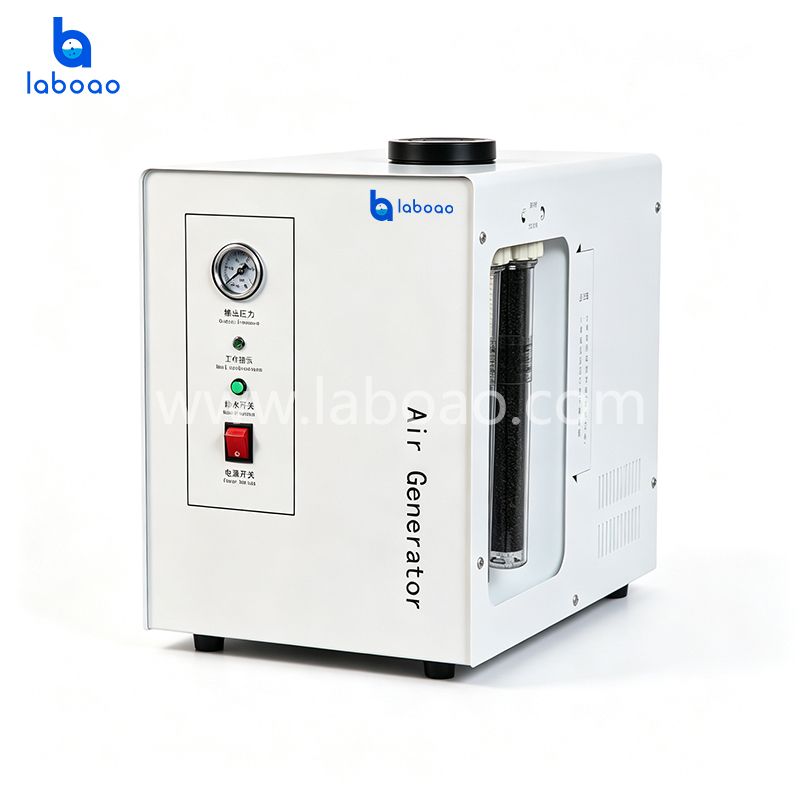

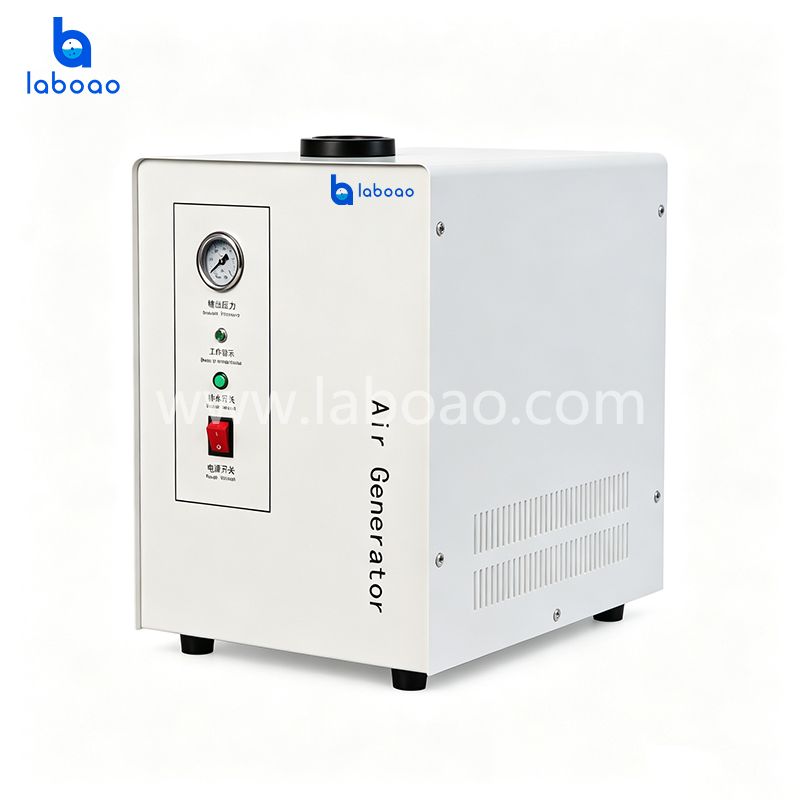

Using compressed air as the feedstock, the air generator outputs clean, dry zero-grade air or combustion-supporting gas after undergoing purification, drying, and pressure stabilization. It serves as a substitute for high-pressure gas cylinders, supplying combustion gas to detectors such as FIDs and FPDs in gas chromatographs, as well as providing a gas source for sample pretreatment equipment.

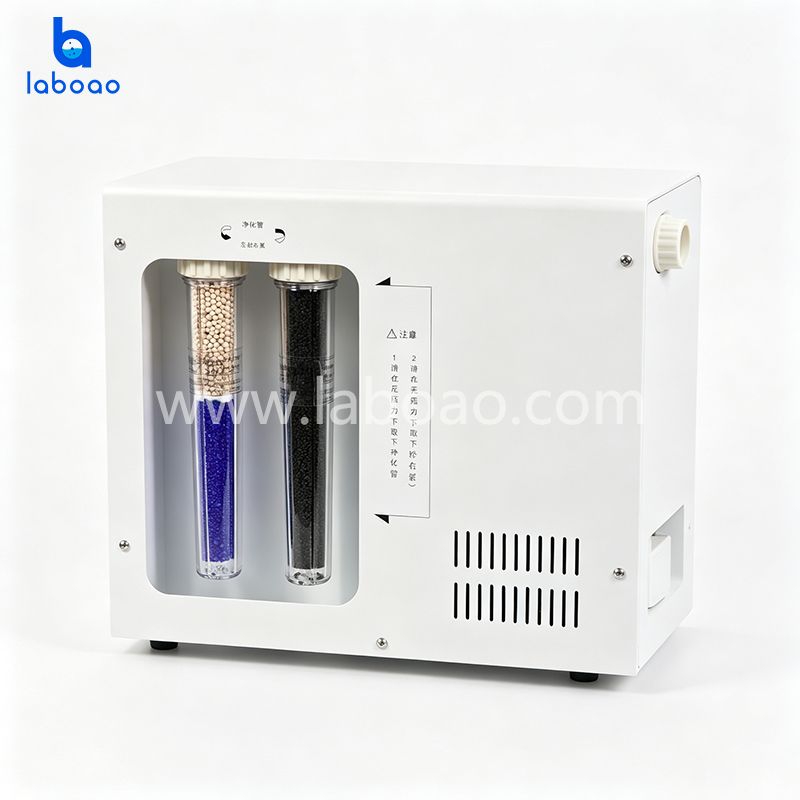

1. A dual-stage purification and filtration system ensures the air supply is clean and dry.
2.Features include an electropolished stainless steel air reservoir and ultrasonic-cleaned, passivated stainless steel piping.
3.The built-in low-pressure, oil-free, and low-noise air compressor creates a quieter, more comfortable laboratory environment.
4.Low-pressure solenoid valves enable continuous, uninterrupted operation, making the unit suitable for unattended, online applications.
Model | LAG-3000 | LAG-5000 |
Output flow rate | 0-3L/min | 0-5L/min |
Output pressure | 0-0.4MPa | 0-0.4MPa |
Pressure stability | ≤0.02% | ≤0.02% |
Operating noise | <35dB(A) | <35dB(A) |
Power supply | 220V±10% | 220V±10% |
Operating ambient temperature | 0-40°C | 0-40°C |
Operating ambient humidity | <85% | <85% |
Dimensions | 302x470x385mm | 302x470x385mm |
