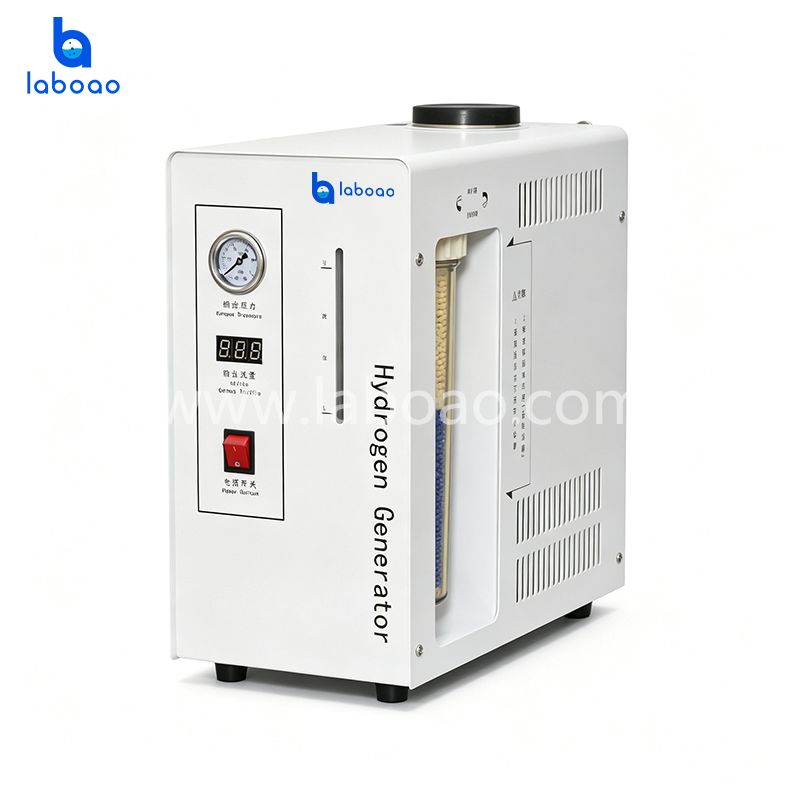

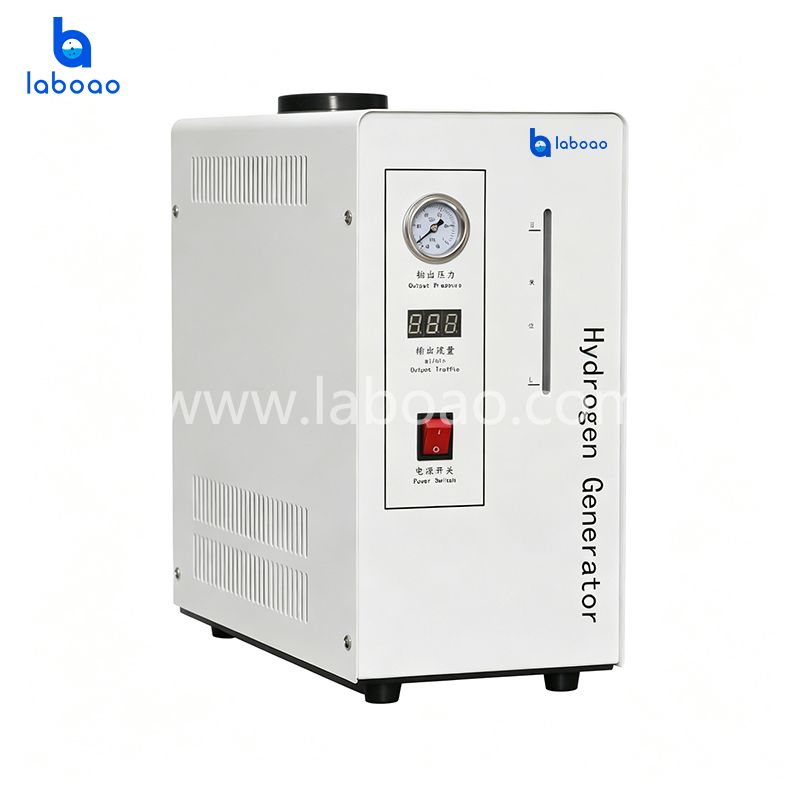

The hydrogen generator produces hydrogen through the electrolysis of pure water using PEM (Proton Exchange Membrane) technology, delivering high-purity gas with a stable flow rate. It serves as a safe and convenient alternative to high-pressure gas cylinders, specifically designed to supply high-purity carrier gas or fuel gas for gas chromatographs.
1. A safe and reliable alternative to high-pressure hydrogen cylinders; eliminates the need for transporting heavy tanks, generates hydrogen immediately upon startup, and offers great flexibility and convenience.
2.Low maintenance costs; requires only the addition of purified water for continuous operation under normal use.
3.Digital display of hydrogen output facilitates monitoring of the instrument's operating status and troubleshooting.
4.Large-capacity water reservoir allows for several days of continuous, uninterrupted operation on a single fill.

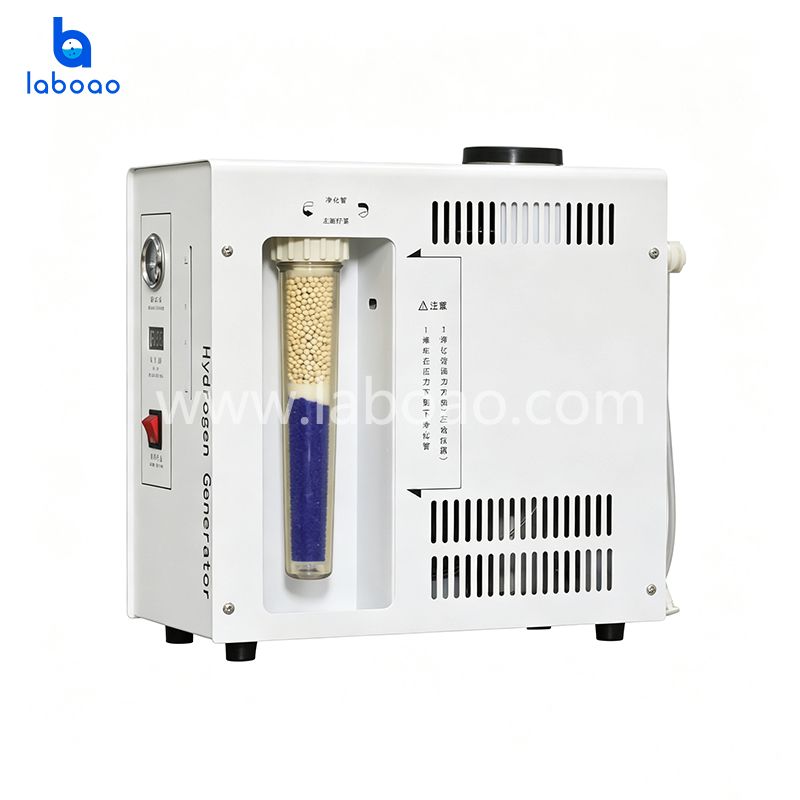

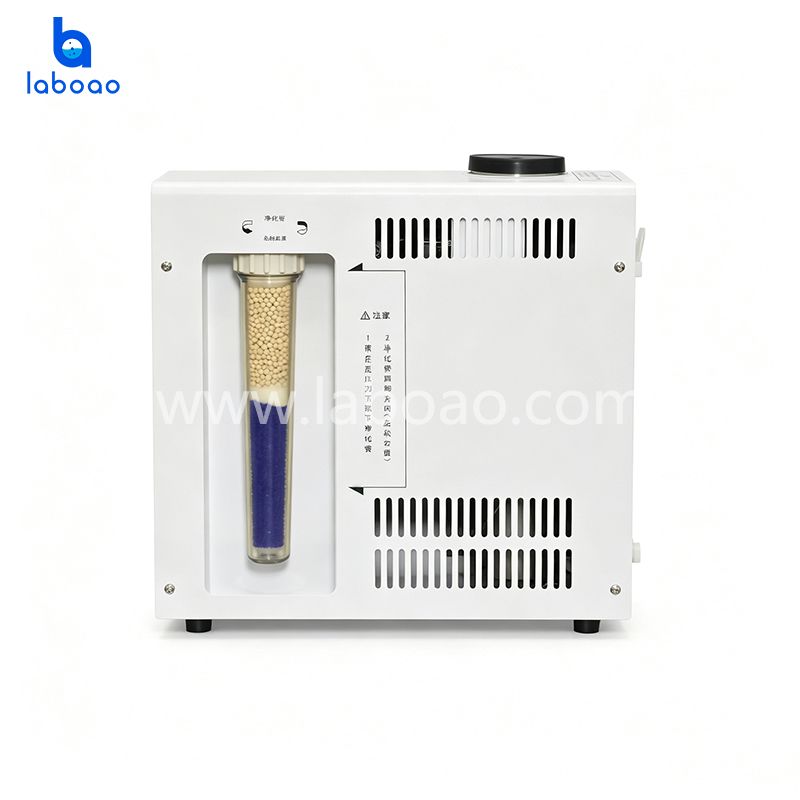

5.Purification tube manufactured using a one-piece deep-drawing process minimizes potential leak points, maximizing instrument reliability.
6.Equipped with dual check valves to provide double protection against liquid backflow into the instrument.
Model | LHG-300 | LHG-500 |
Output flow rate | 0–300 mL/min | 0–500 mL/min |
Output pressure | 0–0.4 MPa | 0–0.4 MPa |
Pressure stability | ≤0.02% | ≤0.02% |
Hydrogen purity | >99.999% | >99.999% |
Liquid tank capacity, water quality requirements | Hydrogen 1200 mL distilled or deionized water | Hydrogen 1200 mL distilled or deionized water |
Power supply | 220 V ±10%, 50–60 Hz | 220 V ±10%, 50–60 Hz |
Operating ambient temperature | 0–40°C | 0–40°C |
Operating ambient humidity | <85% | <85% |
Dimensions | 192 x 400 x 393 mm | 192 x 400 x 393 mm |
