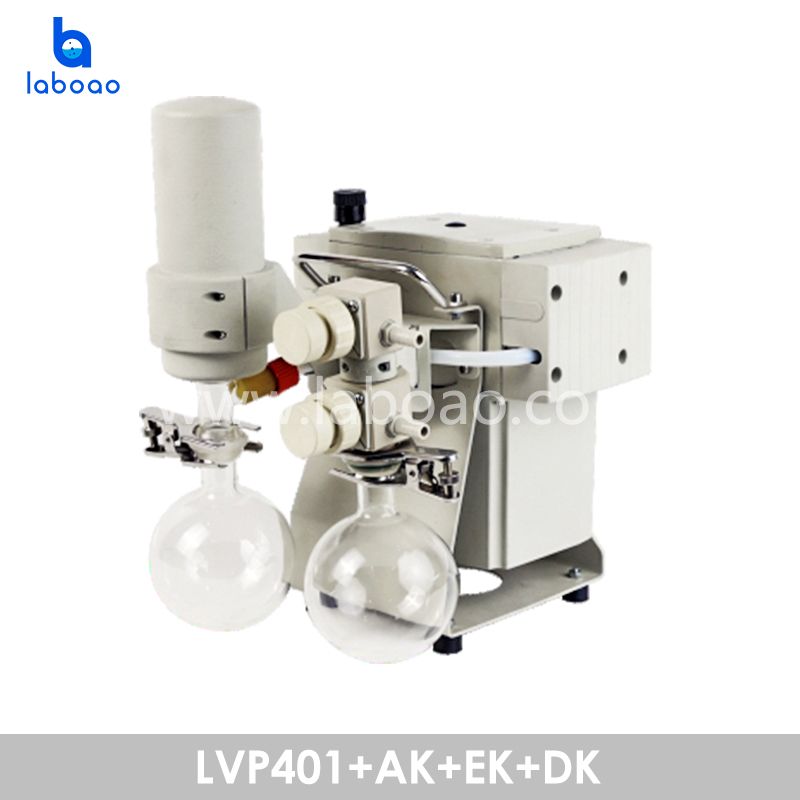

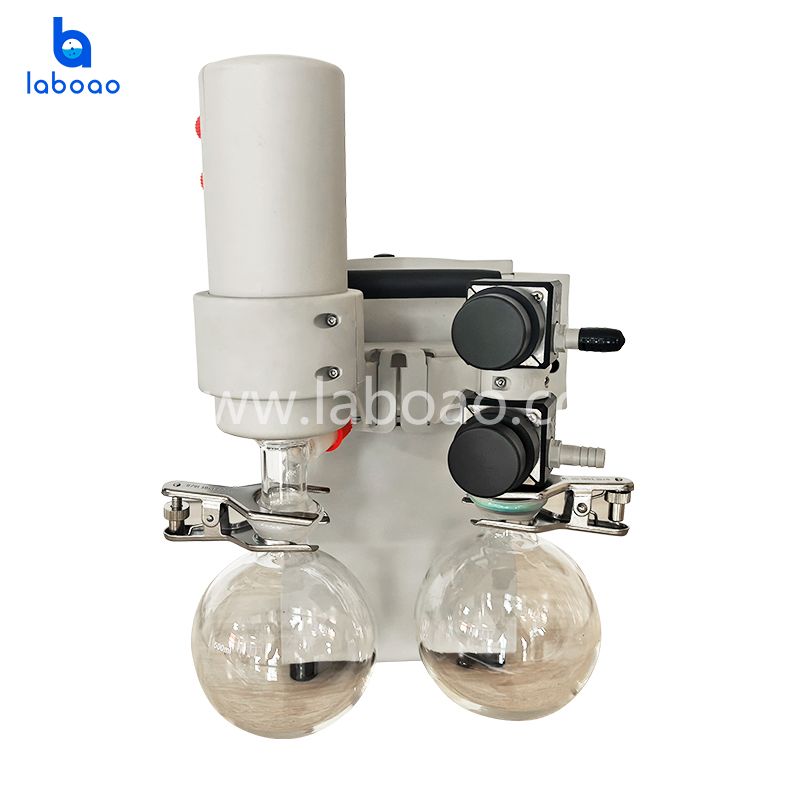

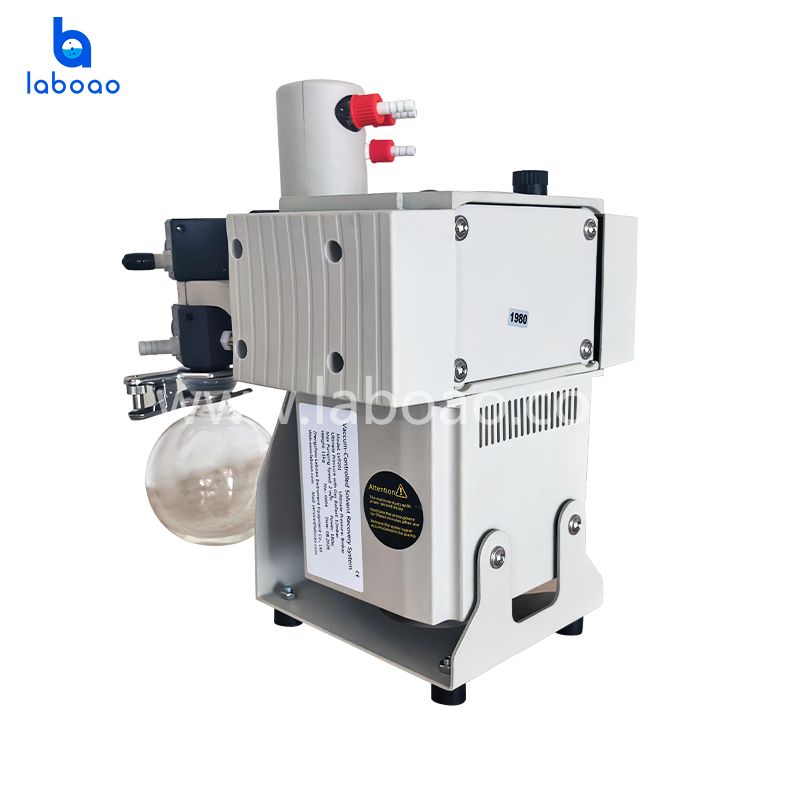

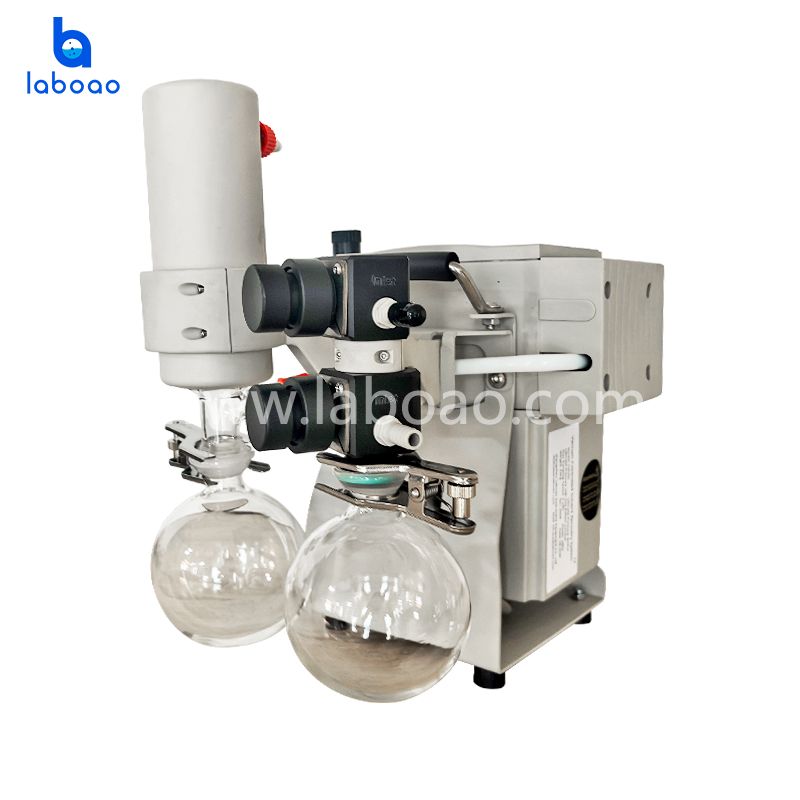

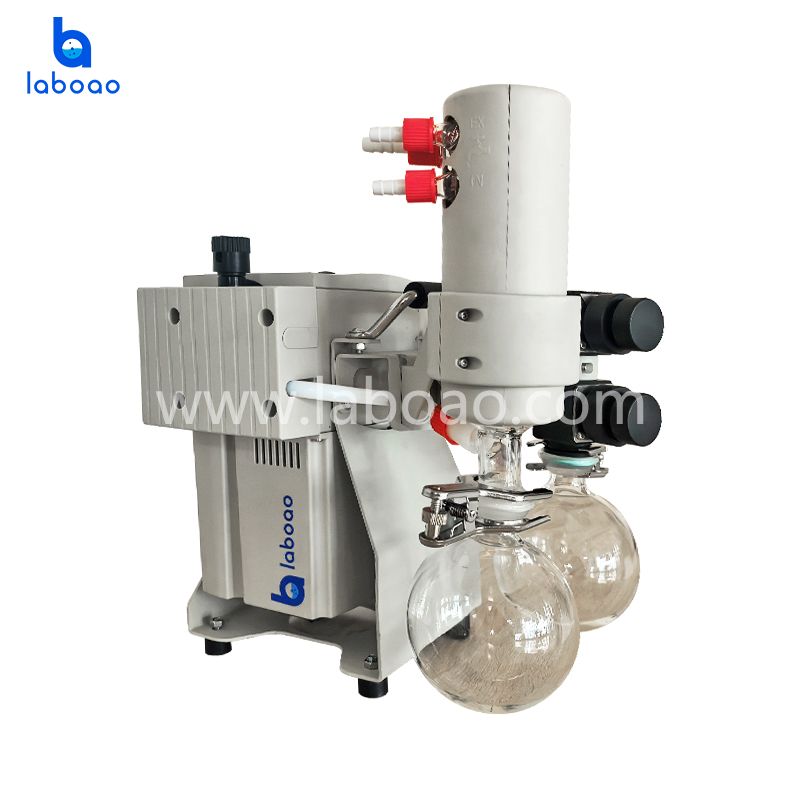

Vacuum-controlled solvent recovery system, specially designed for the recovery of volatile organicsolvents (VOCs). Adopting LVP series inverter motor, precise vacuum control is achieved by directlyadjusting the motor speed through the vacuum controller, and fully automatic evaporation control can berealized with one key start mode and operated under the optimized condition. Combines the functions ofvacuum pumping, condensation recovery and exhaust gas recycling treatment.
1. Full anti-corrosion flow system.
2. The vacuum system's inlet is equipped with a collection flask to prevent particles or solutions from entering the pump, while the exhaust outlet features a solvent recovery system to enable solvent recovery.

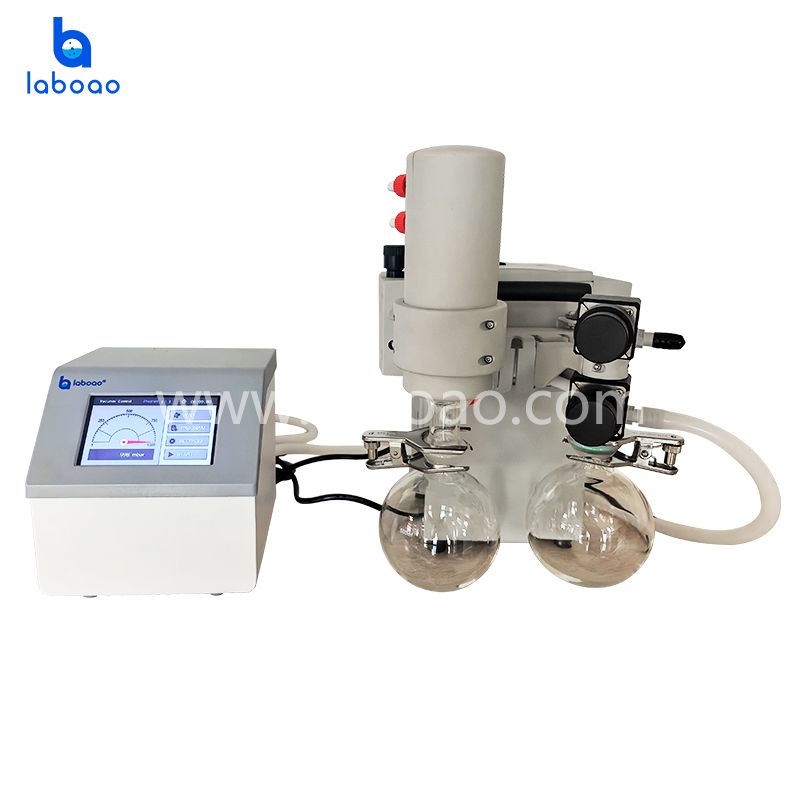

3. Manual mode comes standard with a manual flow valve and automatic mode comes standard with a vacuumcontroller and solenoid valve.
Model | LVP201 | LVP401 | LVP401H | LVP1201 | LVP1001 | LVP801H | |
Ultimate pressure(mbar) | 8 | 2 | 1 | 2 | 0.9 | 0.6 | |
Ultimate pressure with gas balast(mbar) | 12 | 4 | 3 | 3 | 1.5 | 1.2 | |
Maximum pumping speed(m3/h)/(L/s) | 2(0.5) | 4(1.1) | 2(0.5) | 12(3.3) | 10(2.8) | 8(2.2) | |
Dimensions (mm) | 252*332*395 | 252*332*407 | 252*332*407 | 557*396*378 | 557*396*378 | 557*396*378 | |
Net weight (kg) | 11 | 14 | 14 | 23.5 | 23.5 | 23.5 | |
Optional | AK | suction port separator bottle | |||||
EK | Exhaust port collection bottle | ||||||
DK | Dual pumping port | ||||||
SK | Single pumping port | ||||||
PC | Vacuum controller | ||||||
