10L Jacketed Stainless Steel Chemical Reactor
The overall structure of LABOAO 10L stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.
- ModelLSR-10L
- BrandLABOAO
- StockIn Stock
- CustomizedOEM/ODM
- CertificationCE
- Min. Order1 unit
- PortAny port in China
- PackagePlywood case package
Payment
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
DETAILS
- Stainless steel kettle body, anti -corrosion, high temperature resistance, high pressure resistance.
- Multi -mouth reaction kettle cover, the number of kettle mouth can be customized, and the large -mouth design is easy to clean.

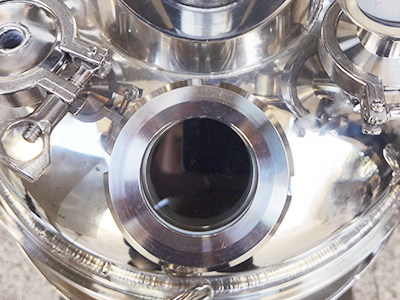

- Visualized glass window, you can see the reaction in the kettle body.

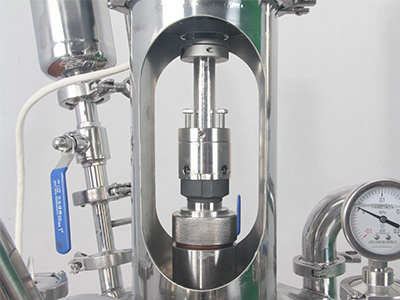

- Stainless steel graphite combination mechanical sealing has wear resistance, high temperature resistance, and better sealing.
- No dead ends, no effusion, no effusion, no leakage, fast recycling solution.
DESCRIPTION
The Double layer stainless steel reactor is designed with double-layer stainless steel. The reaction solvent is placed in the inner layer for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigeration liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under set constant temperature conditions, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed and distilled. It is an ideal choice for modern fine chemical plants, biopharmaceuticals and Ideal pilot and production equipment for the synthesis of new materials.
FEATURES
1. Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously.
2. The entire set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.
3. The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.
4. It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.

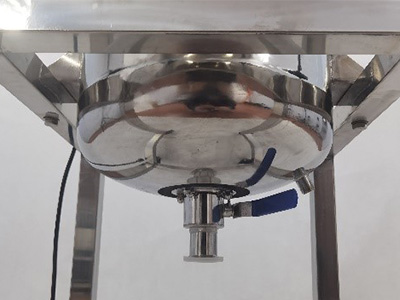

5. The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.

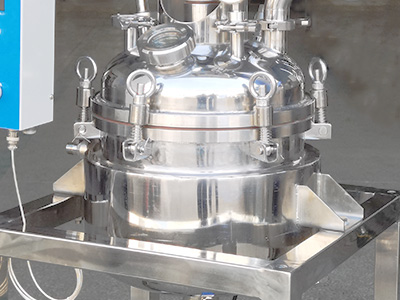

6. Eight-port reactor cover, extra-large port design for easy cleaning, standard port socket for optional assembly of reflux and distillation synthesis devices.
SPECIFICATIONS
Model | LSR-10L |
Kettle volume | 10L |
Mezzanine volume | 3.8L |
Voltage/frequency | 220V/50 Hz |
Reaction temperature | -120~260℃ |
Pressure | -0.1~0.3Mpa |
Stirring speed | 0-460rpm |
Power | 200W |
Sealed form | Stainless steel graphite combination mechanical seal |
Number of cauldron lid openings | Eight ports (optional) |
Material | SUS316L/SUS304 |
Sight glass | Φ32 |
Scraper sight glass | Φ51 |
Temperature measuring hole | 50.5 chuck/Φ8 temperature measuring tube |
Return hole | 50.5 chuck/1000ml funnel |
Drop hole | 50.5 chuck/Φ38 return port |
Pressure gauge | 50.5 chuck/± integrated pressure gauge |
Impeller | 2-point exhaust valve |
Exhaust | SUS316L propeller mixing paddle |
Bottom valve | 50.5 chuck/Φ89 column cooling |
Overall dimensions | 480*480*1560mm |
Optional(Additional fee) | Explosion-proof whole machine/ electric heating/full 316L/collection tank/ mobile frame /spraying PTFE |
