5L Single Layer Glass Reactor

5L Single Layer Glass Reactor 5L Single Layer Glass Reactor 5L Single Layer Glass Reactor 5L Single Layer Glass Reactor 5L Single Layer Glass Reactor 5L Single Layer Glass Reactor

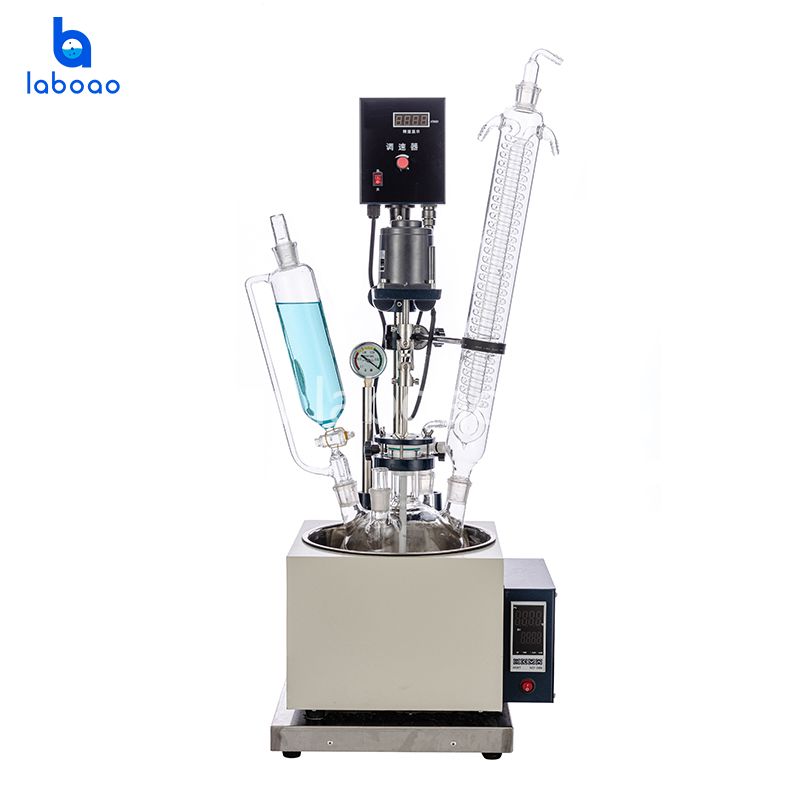

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • ModelLGR-5F
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.


FEATURES

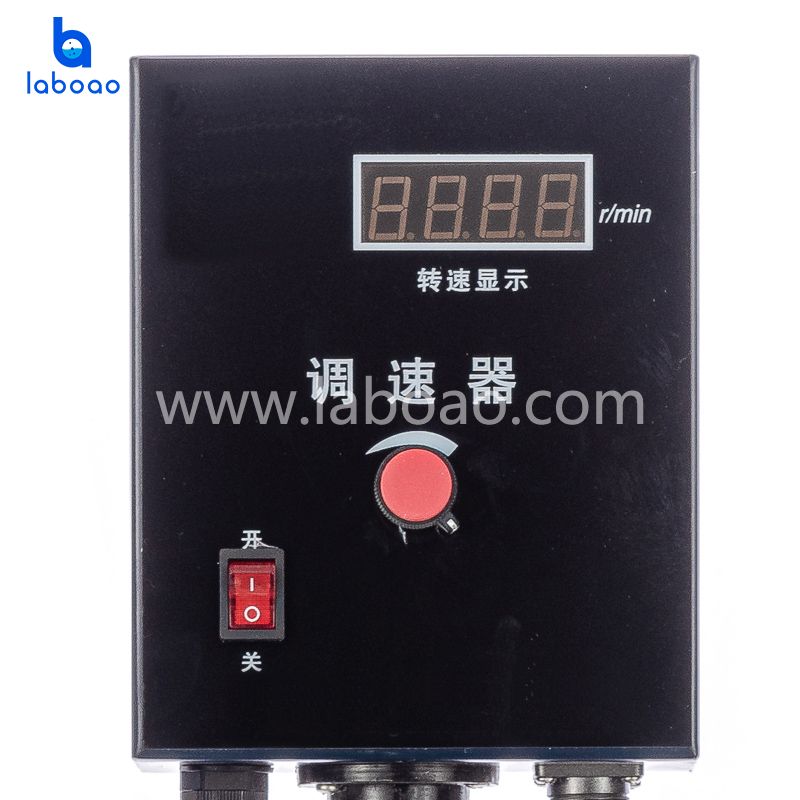

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

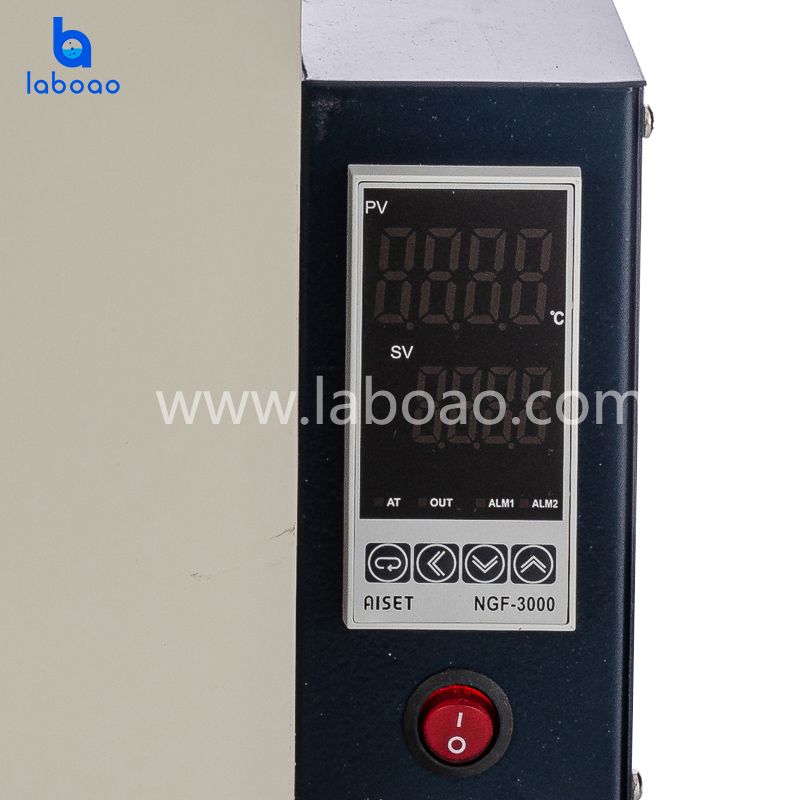

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs).

SPECIFICATIONS

Model

LGR-5F

Kettle volume

5L spherical

Voltage/Frequency

220V/50HZ

Stirring power

90W

Heating power

2KW

Stirring speed

0-800rpm/min

Bath temperature range

room temperature to 180

Temperature accuracy

±1

Vacuum degree

0.098Mpa

Cover size

Φ230mm

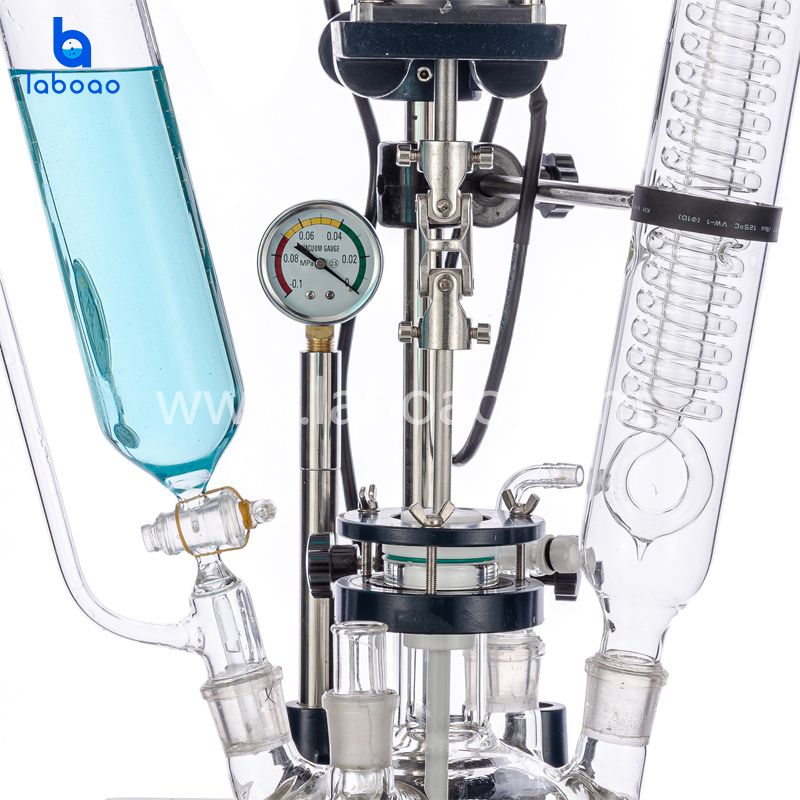

5 ports

Stirring port

Φ50mm flange port

Condenser port

29# standard port

Constant pressure funnel port

29# standard port

Relief port

24# standard port

Temperature measuring port

24# standard port

Stirring    paddle

Φ10*530H(mm)leafing 90mm

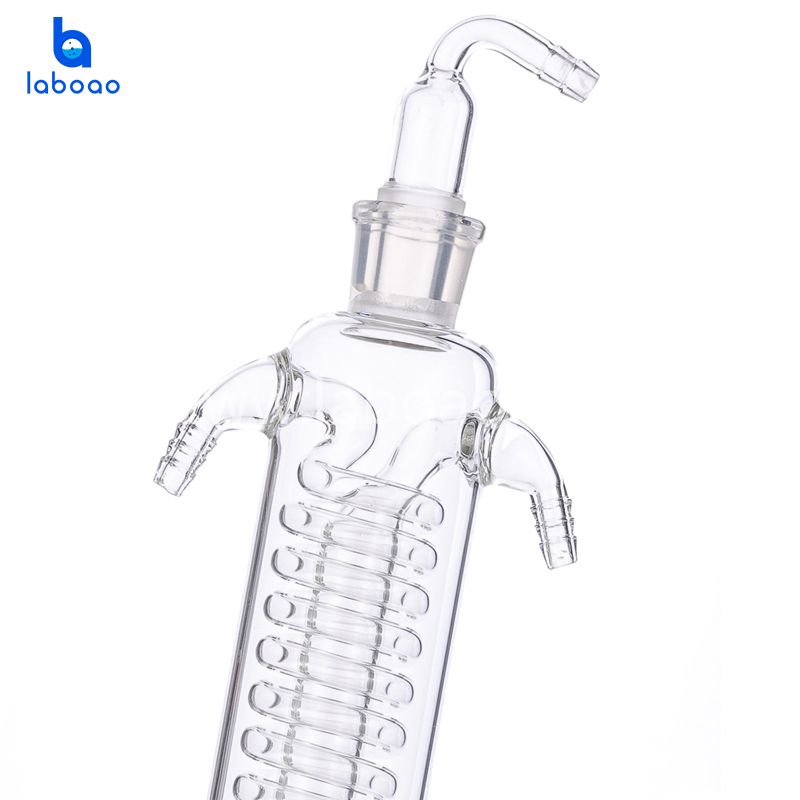

Condenser size

Φ60*450H(mm)upper with 24# standard portupper with 29# standard plug

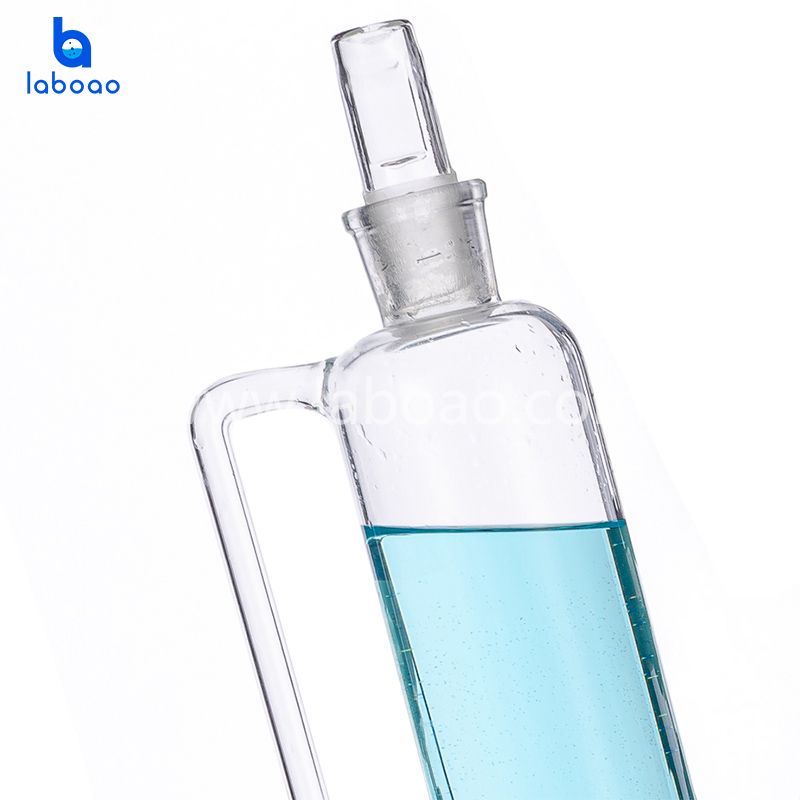

Constant pressure funnel

500ml, upper with 24# standard port   match wit glass plug, upper with 29# standard plug

Relief valve

24# standard plug valvevent nozzle(padoga connector),outer diameter 10mm

Temperature measuring port

24#    standard plug glass measuring tube

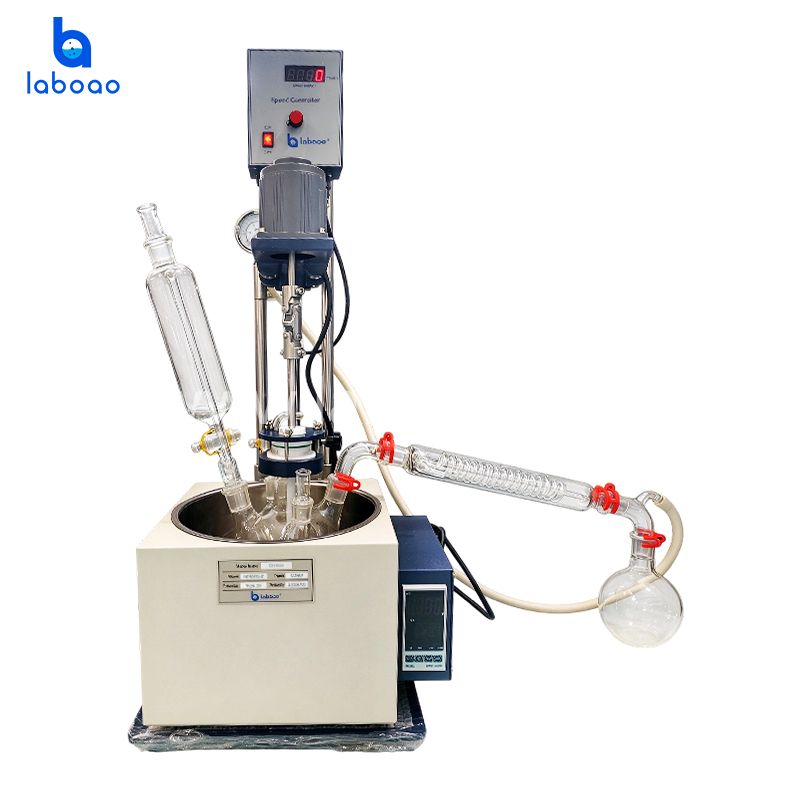

Collecting device

2 adaptor24# standard port500 spheric collecting bottle

Vacuum suction nozzle

24# glass exhaustorsuction nozzle (padoga connector),outer diameter 10mm

In and out circulation nozzle of   condenser coil

padoga connector,outer diameter 10mm

Pot bravery dimension

Φ280*170H(mm)

Overall dimension (W*L*H)

(430-1030)*330*1150mm

Net weight

25kg

Packing dimension

1020*480*520mm, 0.26m³

Packing weight

40kg
