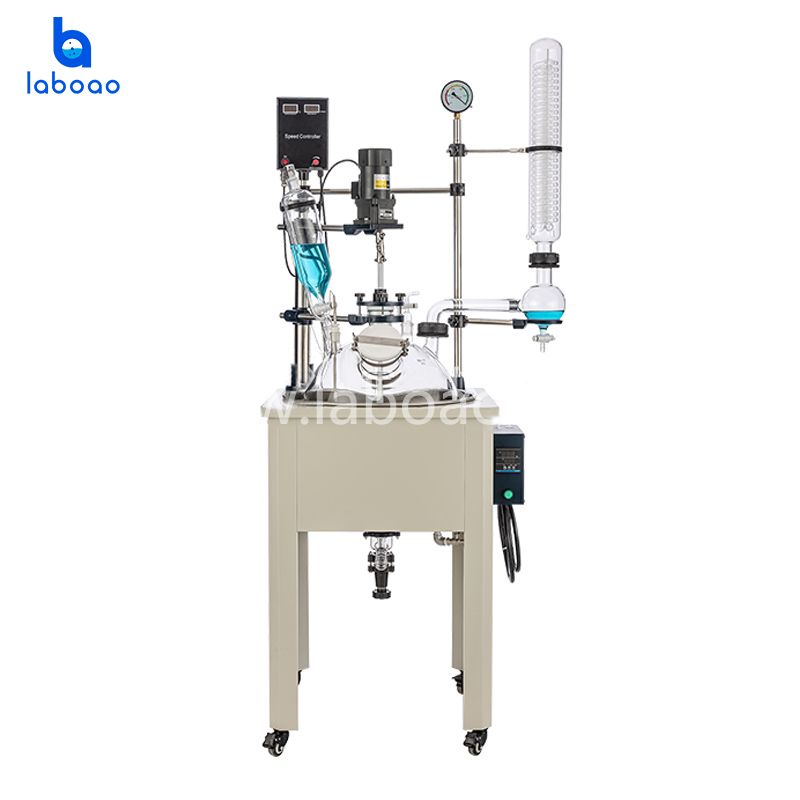

200L Single Layer Glass Reactor

200L Single Layer Glass Reactor 200L Single Layer Glass Reactor 200L Single Layer Glass Reactor 200L Single Layer Glass Reactor 200L Single Layer Glass Reactor
Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • ModelLGR-200F
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

VIDEO

DETAILS

200L Single Layer Glass Reactor detail - 5L volume feeding tank, with air release valve, can feed liquid continuously.
5L volume feeding tank, with air release valve, can feed liquid continuously.
200L Single Layer Glass Reactor detail - Total 6ports on reaction cap, stirring, temperature sensor, solid feeding, air release, liquid feeding, reflux.
Total 6ports on reaction cap, stirring, temperature sensor, solid feeding, air release, liquid feeding, reflux.
200L Single Layer Glass Reactor detail - Receiving flask with 10L volume, with air release valve and discharge valve.
Receiving flask with 10L volume, with air release valve and discharge valve.
200L Single Layer Glass Reactor detail - Max temperature can reach to 200°C of heating bath.
Max temperature can reach to 200°C of heating bath.
200L Single Layer Glass Reactor detail - Discharge valve is glass material with PTFE sealing, which is anti-corrosion.
Discharge valve is glass material with PTFE sealing, which is anti-corrosion.
200L Single Layer Glass Reactor detail - Oil vacuum meter, anti-vibration during stirring.
Oil vacuum meter, anti-vibration during stirring.

DESCRIPTION

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.


FEATURES

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs)

SPECIFICATIONS

Model

LGR-200F

Kettle volume

200L tubular

Voltage/frequency

Stirring   220V/50HZ, heating pot 380V/50HZ

Stirring power

750W 1/5

Heating power

12KW

Stirring speed

0-280rpm/min

Bath temperature   range

room temperature   to 180

Temperature   accuracy

±1

Vacuum degree

0.098Mpa

Kettle size

Φ340mm

6ports of the   cover

Stirring port

Φ60mm flange   port

Condenser reflux   port

50# ball mill   port

Constant   pressure funnel port

50#  ball mill port

Relief port

34# standard   port

Temperature   measuring port

Φ45 flange port

Solid feeding   port

Φ80mm flange   port , inner diameter Φ60mm matched with PTFE cover

Stirring  paddle

Φ20*1300H(mm),  leafing 240mm

Condenser size

Φ160*600H(mm)down with Φ60 flange port

Condenser area

0.95

Reflux elbow

upper with Φ60   flange portleft with 50# ball mill plugright with 24# standard port , matched with functional   valve

Adding dropwise   bottle

5L tubularupper with 29# standard port vent valve*2, 34# standard   port matched with glass plug

Receiving bottle

10Lupper with 50# ball mill port24# standard port vent valve*2, down matched with glass   plug

Relief valve

34# standard   plug valvepadoga connector,outer diameter 12mm

Baiting valve

Φ80 flange portΦ33mm baiting portinclined   discharged port (pagoda connector) Φ34mm, from floor 350mm

Vacuum suction   nozzle

padoga   connector,outer diameter 12mm

In and out   circulation nozzle of condenser coil

padoga   connector,outer diameter 15mm

Pot bravery   dimension

Φ700*800H(mm)

Overall   dimension (W*L*H)


Net weight

178kg

Packing   dimension

2310*860*1195mm,   2.37m³

Packing weight

241kg
