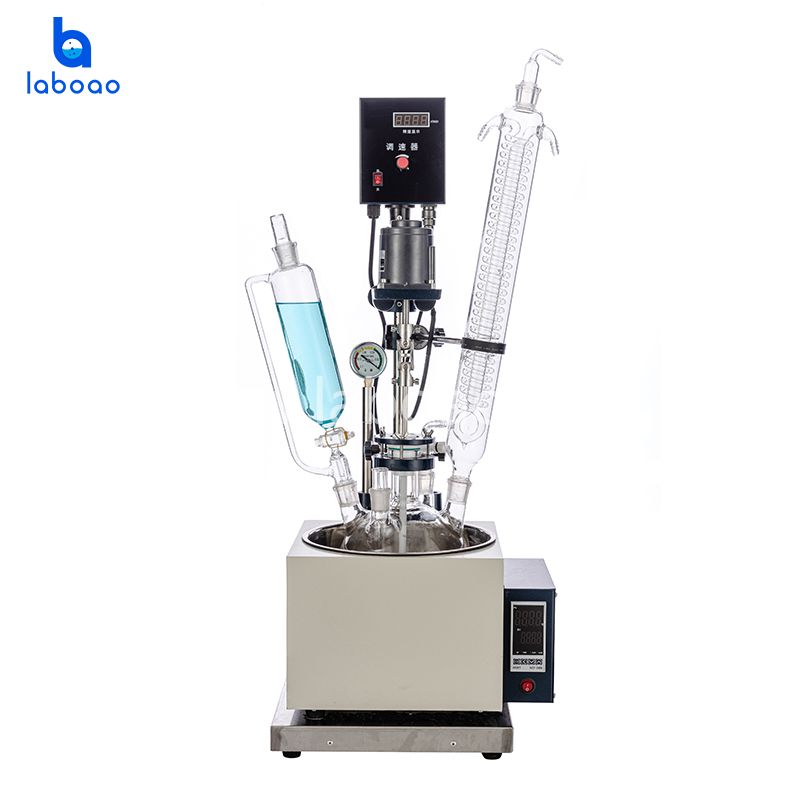

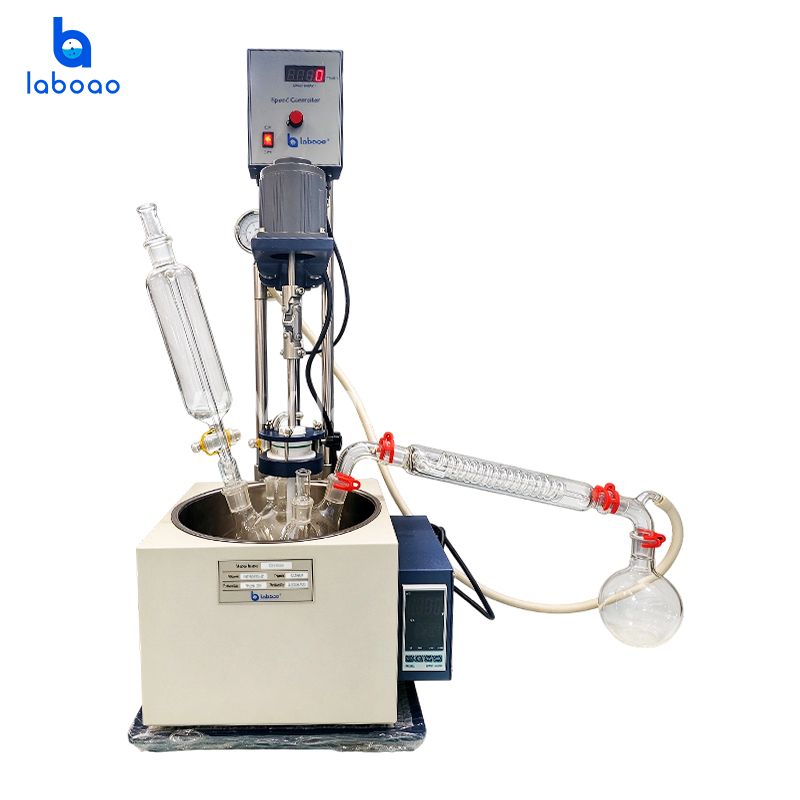

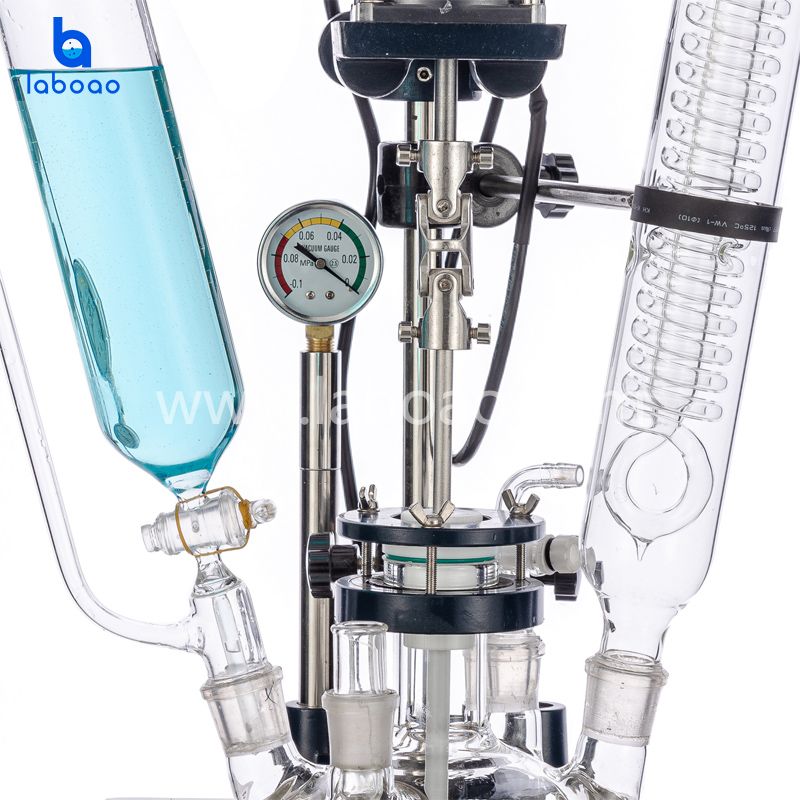

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

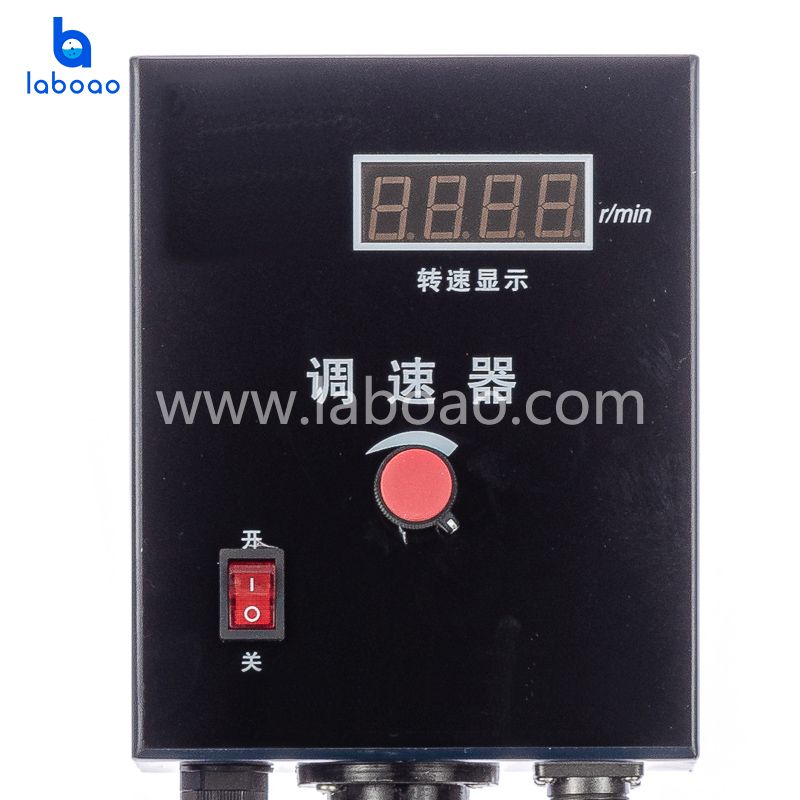

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

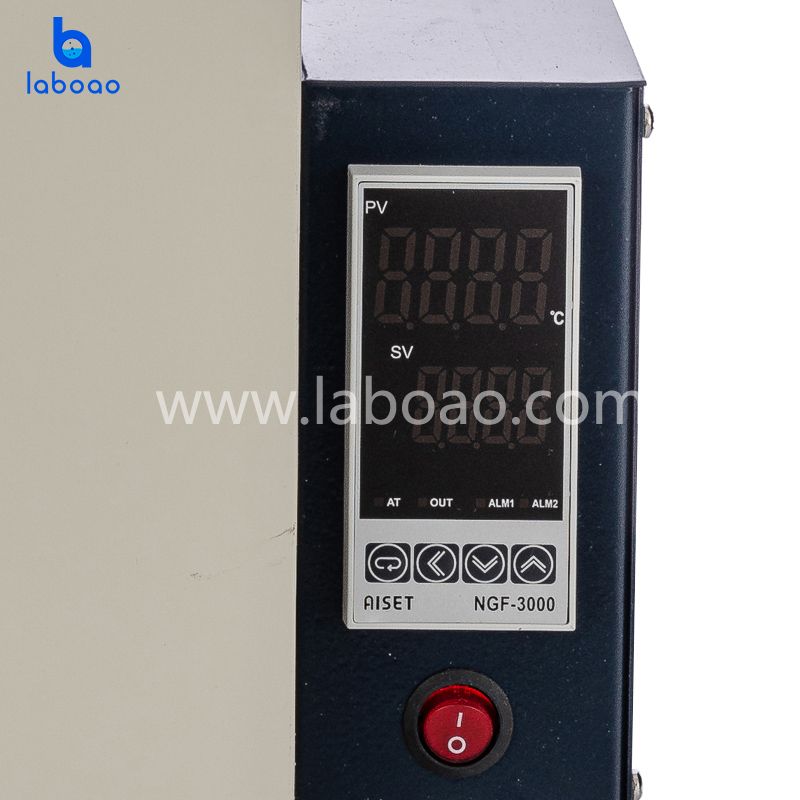

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs).
Model | LGR-2F | |
Kettle volume | 2L spherical | |
Voltage/Frequency | 220V/50HZ | |
Stirring power | 40W | |
Heating power | 1.5KW | |
Stirring speed | 0-800rpm/min | |
Bath temperature range | room temperature to 180℃ | |
Temperature accuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Cover size | Φ166mm | |
5 ports | Stirring port | Φ50mm flange port |
Condenser port | 24# standard port | |
Constant pressure funnel port | 24# standard port | |
Relief port | 19# standard port | |
Temperature measuring port | 19# standard port | |
Stirring paddle | Φ10*400H(mm)，leafing 80mm | |

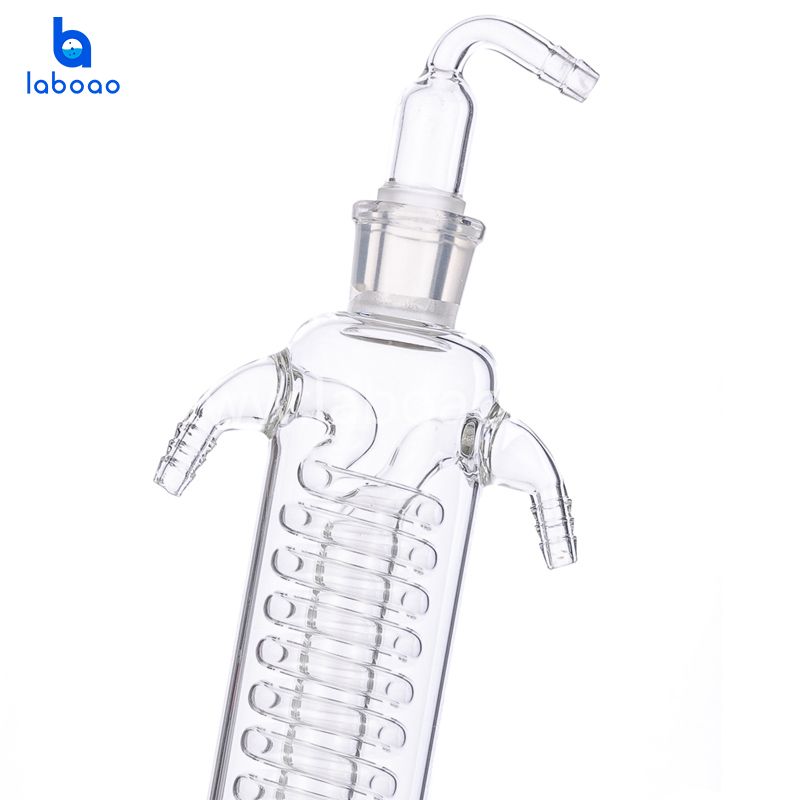

Condenser size | Φ40*350H(mm)，upper with 24# standard port，upper with 24# standard plug | |

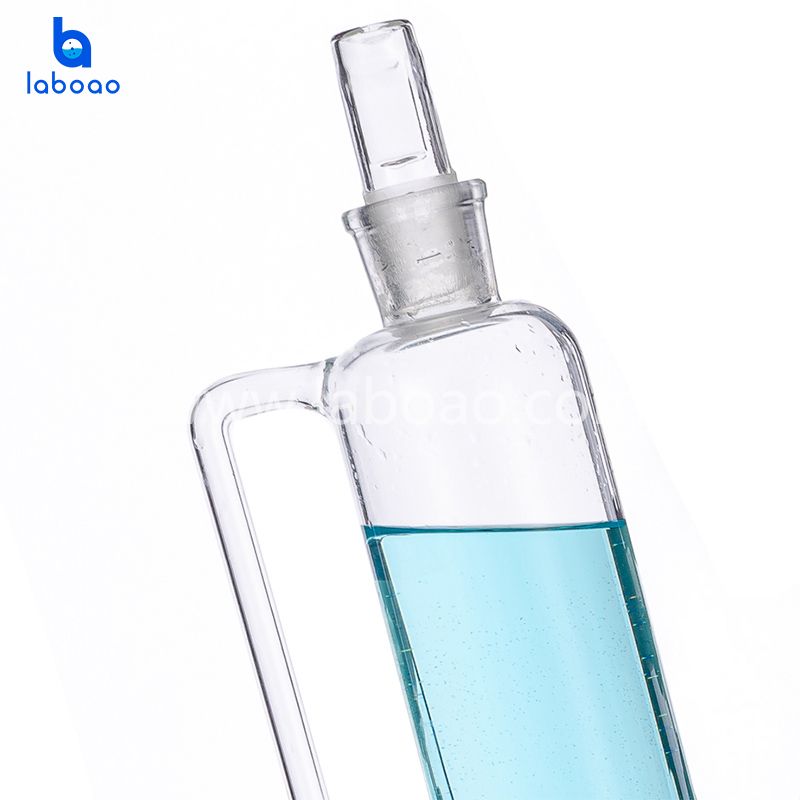

Constant pressure funnel | 250ml, upper with 24# standard port match wit glass plug, upper with 24# standard plug | |
Relief valve | 19# standard plug valve，vent nozzle(padoga connector),outer diameter 10mm | |
Temperature measuring port | 19# standard plug glass measuring tube | |
Collecting device | 2 adaptor，24# standard port，500 spheric collecting bottle | |
Vacuum suction nozzle | 24# glass exhaustor，suction nozzle (padoga connector),outer diameter 10mm | |
In and out circulation nozzle of condenser coil | padoga connector,outer diameter 10mm | |
Pot bravery dimension | Φ245*140H(mm) | |
Overall dimension (W*L*H) | (400-700)*330*930mm | |
Net weight | 18kg | |
Packing dimension | 1000*460*510mm, 0.23m³ | |
Packing weight | 33kg | |
