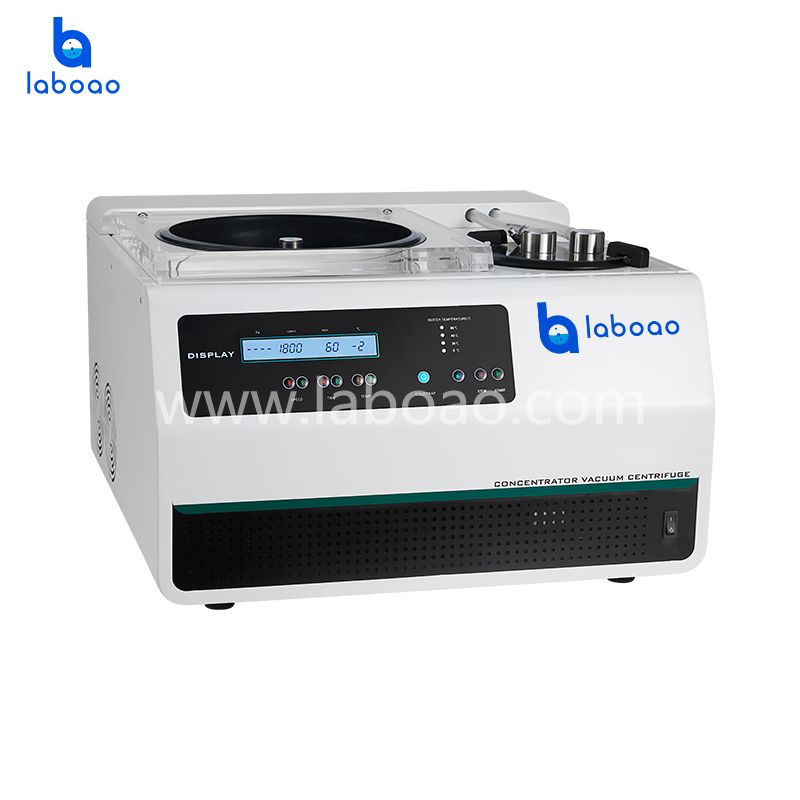

The integrated refrigerated centrifugal concentrator combines centrifugation, vacuum, and low-temperature technologies into a single unit, utilizing centrifugal force and precise temperature control within a vacuum environment to achieve gentle sample concentration. It is suitable for the rapid drying of heat-sensitive biological samples (such as DNA, RNA, and proteins) and volatile solvents, thereby preserving sample activity.
1.Integrated design with a centrifugal chamber and cold trap combined,saving space.
2.Temperature control range of the main unit: -5°C to 80°C, adjustable in 1°C increments.
3.Centrifugal imaging function: Allows observation of sample concentration without stopping the machine.
4.Corrosion Resistance: 304 stainless steel chamber with Teflon coating.
5.The originally imported pressure relief valve automatically releases vacuum, ensuring easy and safe operation and is equipped with an automatic on/off function.
Model | LVC-8 |
Speed range | 300rpm~1800rpm |
Maximum centrifugal force | 430×g |
Time range | 0~9999min |
Temperature control range | -5℃~+80℃ |
Cold trap temperature | -50℃ |
Cold trap capacity | 2000ml |
Ultimate vacuum value | ≤30Pa |
Noise | ≤60dB(A) |
Power | 1750W |
Voltage | AC220V 50Hz/60Hz 10A |
Size(L*D*H) | 580×609×366mm |
Weight | 60Kg |
