Total organic carbon (TOC) expresses the total amount of organic matter in water by the carbon content, and the result is expressed by the mass concentration of carbon (C) (mg/L). Carbon is a common component of all organic matter and the main element that makes up organic matter. The higher the TOC value of water, the higher the content of organic matter in the water. Therefore, TOC can be used as an indicator to evaluate organic pollution of water quality.
1. Equipped with conductivity detector to quantify TOC concentration.
2. TOC-1700 is able to work under on-line mode to realize real-time monitoring.
3. Ideal choice to measure and monitor microelectronics water, purified water water for injection, etc.
4. Automatic sample introduction with one-button setting, no sample contamination, no harm on operator and environment.
5. UV oxidation by UV lamp, no need to add acid, gas or catalytic, greatly reduces the experiment and maintenance cost.
6. 7 inches touch screen with smart ul, easy to operate and read test data.
7. In compliance with FDA-21 CFR Part11 requirements and USP, EP,JP and ChP.
8. Auto sampler is optional according to different experiment requirements.
9. Online and offline mode can be easily switched. (TOC-1700 is online)
10. 8GB large storage capacity, no restriction of data and time.
11. Quick test, each analysis takes less than 3 minutes.
12. All historical records can be traced by searching test date.
13. Data can be retrieved and saved to USB directly ,
14. Equipped with Bluetooth printer for quick and easy data printing.
15. Modular design for quick installation and easy maintenance.

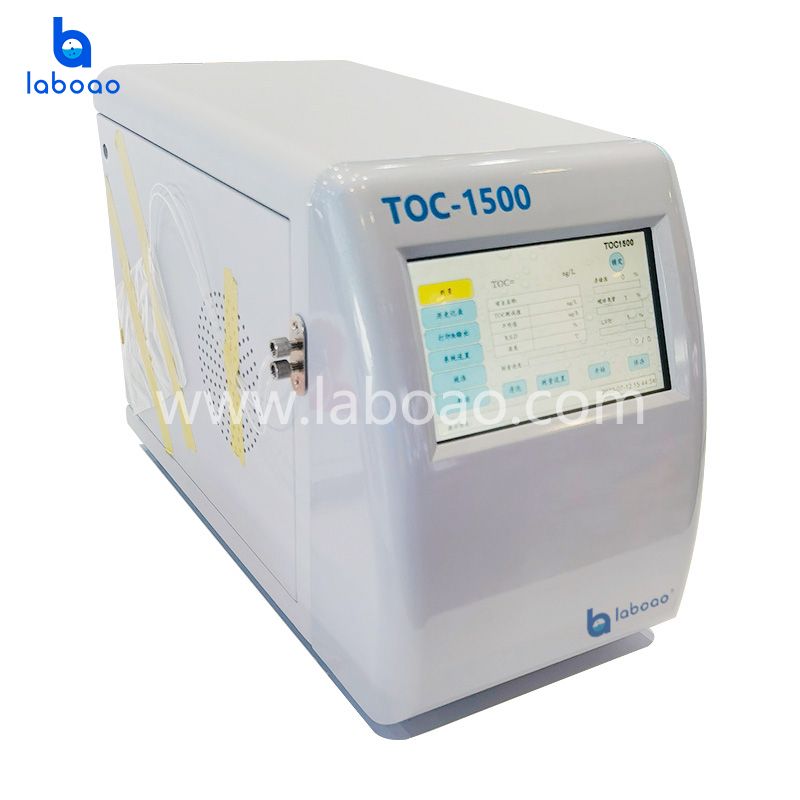

Model | TOC-1500 |
Detection Mode | Offline Detection |
Detection Range | 0.001-1.5mg/1 |
Detection Limit | 1ppb |
Max Tolerance | ±5% |
Analysis Time | 3 min |
Response Time | Within 10 min |
Sample Temperature | 1-95°C |
Environment Temperature | 10-40°C with temperature change ±5 °C/d |
Sample Flow Speed | 3ml/min |
Relative Humidity | ≤85% |
Drifting | ±5% |
Repeatability Tolerance | ≤3% |
Rated Power | 100W |
Frequency | 50/60Hz |
Dimension | 440*220*300mm |
Power Supply | AC 220V, 50/60Hz or AC 110V, 50/50Hz |
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
