LDH Series Precision Constant Temperature Incubator With LCD Touch Screen

The precision constant temperature incubator scientific research departments to store strains, biological culture, and conduct scientific research.

ModelLDH Series
BrandLABOAO
PortAny port in China
PackagePlywood case package

INQUIRY EMAIL

Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DETAILS

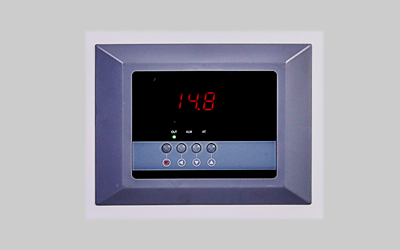

: Multi-function control panel

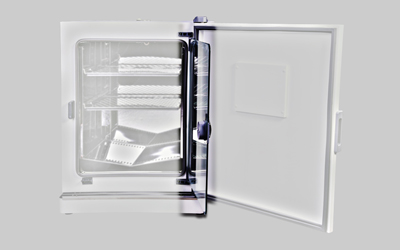

: Safety glass observation window

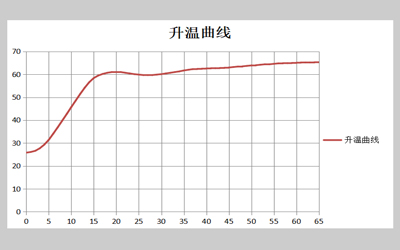

: Heating curve

DESCRIPTION

It is a necessary equipment for colleges, biology, agriculture, and scientific research departments to store strains, biological culture, and conduct scientific research.

FEATURES

1. Using heating plate heating method, the temperature distribution is more uniform

2. Mirror stainless steel liner, convenient for cleaning and maintenance

3. High configuration with lighting, UV sterilization, over lift protection, inflation port and other equipment to meet the different needs of customers

4. The outer door is sprayed with carbon steel plate, and the inner door is strengthened with glass, so as to check the experimental status at any time

5. Convenient operation, constant value operation, regular operation and automatic stop

6. Special function key to realize temperature setting

7. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

8. L-type LCD multi-data full-screen operation display, equipped with lighting, UV sterilization, over-rise prevention, inflation port and other equipment to meet various customer needs.

SPECIFICATIONS

Model	Standard type	LDH43D	LDH63D	LDH124D	LDH209D
	High matching	LDH43L	LDH63L	LDH124L	LDH209L
Internal circulation method		natural convection
Performance	Temperature control range	RT+5-65℃
	Temperature resolution	0.1℃
	Constant temperature fluctuation	High temperature： ±0.5℃
	Temperature uniformity	±1℃
Constitute	Interior Material	stainless steel
	Exterior Material	Cold rolled steel sheet, surface coating
	Thermal insulation material	Aluminum silicate fiber
	Heater	Heating pipe
	Rated power	0.25kw	0.25kw	0.50kw	0.6kw
	Exhaust vent	Inner diameter 28mm*1, located at the top
Controller	Temperature control mode	PID
	Temperature setting mode	Touch the button to set
	Temperature representation	D: Measurement temperature display: 4-digit upper display; set temperature display: 4-digit lower display
		L: Measurement temperature display: LCD upper display; set temperature display: LCD lower display
	Timer	0~9999min (OR hour)
	Operation function	fixed value operation, timing operation, automatic stop
	Program mode	D: NO L:Optional
	Additional functions	Deviation correction, menu key locking, power failure memory
	Sensor	Pt100
Safety device		Over rise alarm and overload protection
Specifications	Internal dimensions (mm)	350350350	400350450	500450550	600580600
	External Dimensions (mm)	500480742	600480842	699582942	799711992
	Package size	670600880	710600970	8107001070	9408601190
	Internal volume	43L	49L	124L	209L
	Diaphragm bearing	15kg
	Number of shelves	7	10	13	15
	Shelf spacing	35mm
	Rated current	AC220V/1.1A	AC220V/1.1A	AC220V/2.3A	AC220V/2.7A
	Net / gross weight	29/32	33/38	49/53	62/67
Accessories	Partition frame	4
	Shelf	2
Standard equipment		l: Sterilization, lighting, over-rise prevention, 485 interface, inflation interface
Configuration can be increased		L: Partition, USB interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm
