Ultra Fast 1064nm Handheld Raman Spectrometer

Ultra Fast 1064nm Handheld Raman Spectrometer Ultra Fast 1064nm Handheld Raman Spectrometer Ultra Fast 1064nm Handheld Raman Spectrometer Ultra Fast 1064nm Handheld Raman Spectrometer Ultra Fast 1064nm Handheld Raman Spectrometer Ultra Fast 1064nm Handheld Raman Spectrometer Ultra Fast 1064nm Handheld Raman Spectrometer

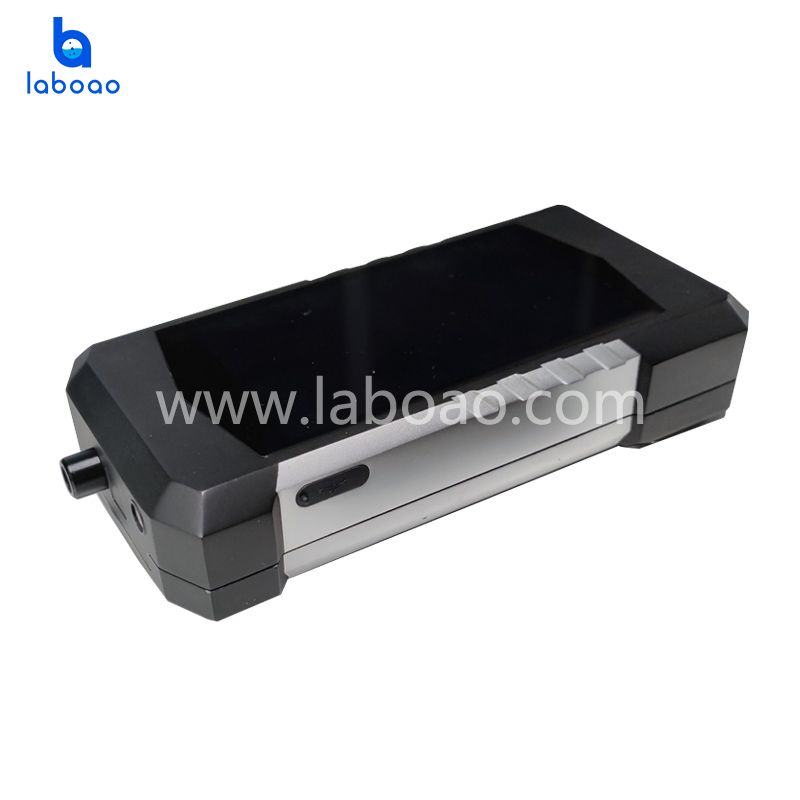

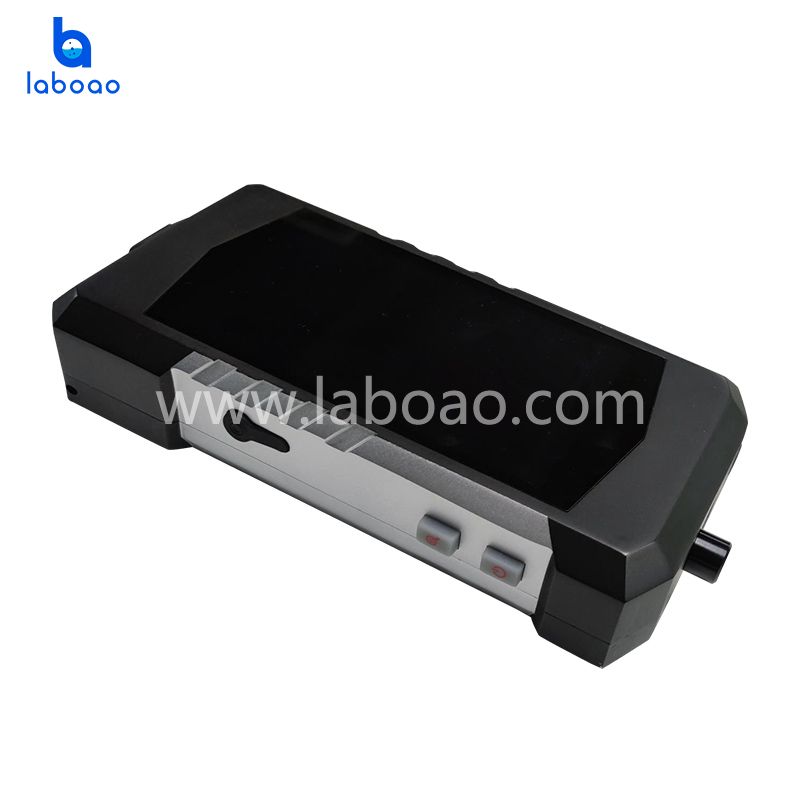

LATR6600Pro is based on the ultra-high fluorescence suppression effect of the 1064nm excitation light itself, which is especially suitable for the detection of high-fluorescence samples; LATR6600Pro adopts a newly designed high-throughput optical path structure and signal processing technology, which increases the signal sensitivity by 4 times and accelerates the detection speed 4 times. Its size is extremely small, less than 950g, and it is very convenient to carry. It can be used in customs, public security, laboratories, workshops, warehouses, docks and other sites to quickly identify drugs, precursor chemicals, explosives, jewelry, jade, raw materials and other items. And it can be used to quickly detect and identify additives, pesticide residues, and veterinary drug residues in food.
  • ModelLATR6600 Pro
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

VIDEO

DESCRIPTION

LATR6600Pro has built-in excellent Raman spectrum recognition algorithm, which can detect substances without difference, easily identify substances, and can add user's own spectrum data at the same time. Using Android system, the interface is simple and clear, equipped with a 5.5-inch high-definition screen, using a high-definition camera 13 million, can record the inspection site at any time, built-in WIFI, Bluetooth, GPS and other modules, simple and smart. Public safety, food safety, pharmaceutical safety, fast non-destructive testing, everything is under your control!

LABOAO provides full technical support and services, including spectral library building, method & verification, IQ/OQ/PQ validation, etc.


Application:

Police anti-narcotics (detection of heroin, fentanyl, etc.);

Detection of hazardous substances at the entrance of high-speed rail and subway;

Identification of raw materials and excipients in the pharmaceutical industry;

Food safety testing;

Gem identification

Substance identification, etc.

FEATURES

1. The speed of ultra-fast recognition is four times higher than that of the third generation.

2. 1064nm stimulates light and reduces fluorescence interference;

3. Loss-free, rapid detection, and identification, one-click operation;

4. Precision algorithm for detecting mixtures;

5. HD 5.5-inch capacitive touch screen with a superior sense of control;

6. 13-mega pixels HD cameras;

7. Support barcode, QR code scanning;

8. Accurate GPS positioning;

9. support 4G, GSM, GPRS, Bluetooth, WI-FI and other communication methods;

10. Support users to build their own genealogical library;

11. The test results can generate reports and export them

12. Endurance time of built-in lithium batteries: 4-6 hours

13. super lightweight (950 g) is easy to carry.

14. IP-67 dustproof and waterproof industry protection

SPECIFICATIONS

Model

LATR6600 Pro

Spectral Range

200-2500 cm-1

Interface

WIFI, USB Type-C, Bluetooth, GSM

Operating System

Android

Operating Temperature

-20 – 50

Weight

<950 g

Touch Screen

5.5 inches, 1920×1080, multi-touch

Export Report

Test results report export pdf, txt including   detect result, spectral info, evident pictures

Battery

4-6 h continuous operation

Resolution

8-15 cm-1

Detector

TE cooled InGaAs

Size

220×110×45mm

Laser Power

0-600mWSoftware   adjustable

Excitation Wavelength

1064 ± 0.5nm

Features

Super fluorescence suppression effect

Report output

Support exporting   multi-information test reports (test results, spectrum information, photo   forensics) txt, pdf, etc.

Models and   application areas

Model

Spectral Library

Application Field

LATR6600Pro

User-built database

Research field

LATR6600Pro-DH

Drugs: heroin, methamphetamine, cocaine, K powder,   fentanyl, alprazolam, etc.

Precursor toxins: ephedrine, chloroform, ether,   etc.

Explosives: TNT, RDX, PETN, TATP, Ammonium   Nitrate, Roxykin, Oak Tuo Jin etc.

Hazardous chemicals: alcohol, sulfuric acid,   gasoline, nitric acid, toluene, potassium dichromate, etc.

Food safety:   pesticides, illegal food additives, etc.

Public security,   customs, subways, courts, prisons, public places, etc.

LATR6600Pro-PH

Pharmaceutical raw   materials and auxiliary materials testing, etc.

Pharmaceutical   factory

LATR6600Pro-GM

Jewelry and jade:   diamond, agate, jade, etc.

Jewelry appraisal

LATR6600Pro-IN

Chemicals,   plastics, rubber, polymers, synthetics, etc.

Industrial   application

LATR6600Pro-FTN

Remifentanil,   Ibufentanil, Lofentanil, Trifentanil, Ofentanil, Carfentanil, Alfentanil,   Mifentanil, Fentanyl, Alfentanil Hydrochloride, More than 40 kinds of   sufentanyl citrate, fentanyl, etc.
