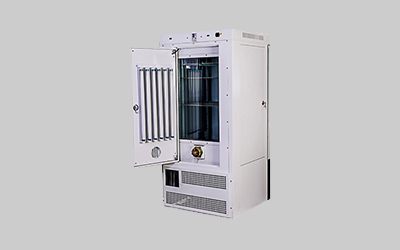

Light Incubator Machine For Laboratory

Light Incubator Machine For Laboratory Light Incubator Machine For Laboratory Light Incubator Machine For Laboratory Light Incubator Machine For Laboratory
Light Incubator is suitable for agricultural and forestry research, basic research and quality inspection of Arabidopsis and plant growth tissue culture, life sciences, pharmaceuticals and other fields.
  • ModelLZX Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

VIDEO

DETAILS

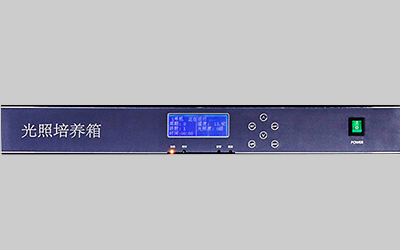

Light Incubator Machine For Laboratory detail - Multi-function control panel
Multi-function control panel
Light Incubator Machine For Laboratory detail - Rear panel
Rear panel

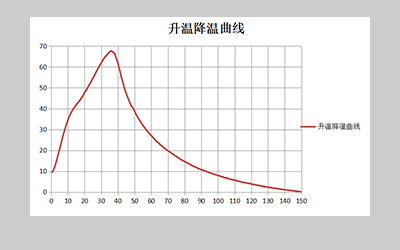

Light Incubator Machine For Laboratory detail - Heating curve
Heating curve


DESCRIPTION

Light Incubator is suitable for agricultural and forestry research, basic research and quality inspection of Arabidopsis and plant growth tissue culture, life sciences, pharmaceuticals and other fields.

FEATURES

1. Stable high luminous flux light source, three / four side illumination, to ensure the stability of the light source

2. Convenient operation, constant value operation, regular operation and automatic stop

3. Special function key to realize temperature setting

4. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

5. Forced air supply by centrifugal turbine makes the temperature more uniform

6. LCD 30 segment program control, repeated step, step operation

7. Compressor overload protection, power-off protection, parameter memory, power recovery

8. Loop self diagnosis, sensor fault alarm, upper and lower line over temperature alarm

9. Intelligent defrosting, monitoring timing, brand compressor

10. LED light source was used for illumination, and useful light was extracted for plant growth;The energy consumption of LED light source is about 80% lower than that of ordinary light source; the LED light source is stable, fast response and long service life (up to 30000 hours or more)

11. The air intake grille can be directly opened to facilitate the cleaning of the condenser

SPECIFICATIONS

Model

Procedural

(three-sided   illumination)

LZX250P

LZX300P

LZX400P

Program   function type (four-sided illumination)

LZX250PF

LZX300PF

LZX400PF

Performance



Temperature control range

No light : 0-65; illumination10-65

Constant temperature fluctuation

±1

Temperature resolution

0.1

Temperature uniformity

1.5(37)

Humidity fluctuation

±3%

Humidity distribution accuracy

±3%

Lighting mode

LED lighting, 10 levels adjustable

Light intensity

three-sided(P)

0-30000LX

0-33000LX

four-sided(PF)

0-33000LX

0-35000LX

Work environment

+5-35

Constitute



Heating power

1000W

Compressor power

174W

241W

375W

Lighting power



246W(P)

270W(P)

336W(PF)

360W(PF)

maximum power

1420W(P)

1587W(P)

1845W(P)

1510W(PF)

1677W(PF)

1935W(PF)

compressor

Air cooled hermetic compressor

Cryogen

R134A

Defrosting structure

Automatic

Controller

Temperature control mode

30 stage program control

Temperature setting mode

P: Touch six buttons to display LCD

Controller

Large screen color printing LCD   controller

Operation function

Constant value operation, Program   running

Additional functions

Electronic digital temperature   limiter; deviation correction; intelligent defrosting

Sensor

Pt100

Specifications



Internal dimensions (mm)

500*530*950

550*580*950

590*620*1100

Dimensions (mm)

690*705*1650

740*755*1650

780*795*1800

Outer package size

890*905*1870

940*955*1870

980*990*2020

Internal volume

250L

300L

400L

Diaphragm bearing

15kg

Number of diaphragm layers

6

7

7

Diaphragm spacing

120mm

Rated current

AC220V50HZ

Net / gross weight

76/117

78/119

81/122

Accessories

Partition

2

Partition frame

4

Configuration can be increased

Diaphragm, RS485 interface, printer,   recorder, external communication, remote control, wireless SMS alarm, U disk   data storage, red and blue light plant growth lamp
