T Type Lab Freeze Dryer

T Type Lab Freeze Dryer T Type Lab Freeze Dryer T Type Lab Freeze Dryer T Type Lab Freeze Dryer
LFD-18T Freeze Dryer is suitable for the preservation of bacteria, fungi and other microbial strains in the ampoule tube. The ampule sealing method is often used in the laboratory. The samples are sealed in small ampoules after freeze drying. It has the advantages of long preservation period, small variation, ease of large-scale preservation and wide applications.
  • ModelLFD-18T
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

LFD-18T lyophilizer has 24pcs of standard rubber sealing valves and 24 ampules can be mounted. Special requirements can be customized. It is suitable for the preservation of bacteria, fungi and other microbial strains in the ampoule tube. The ampule sealing method is often used in the laboratory. The samples are sealed in small ampoules after freeze drying. It has the advantages of long preservation period, small variation, ease of large-scale preservation and wide applications.

FEATURES

1. all-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. with sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. world- known  brand compressors, high efficiency, long life, low noise.

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

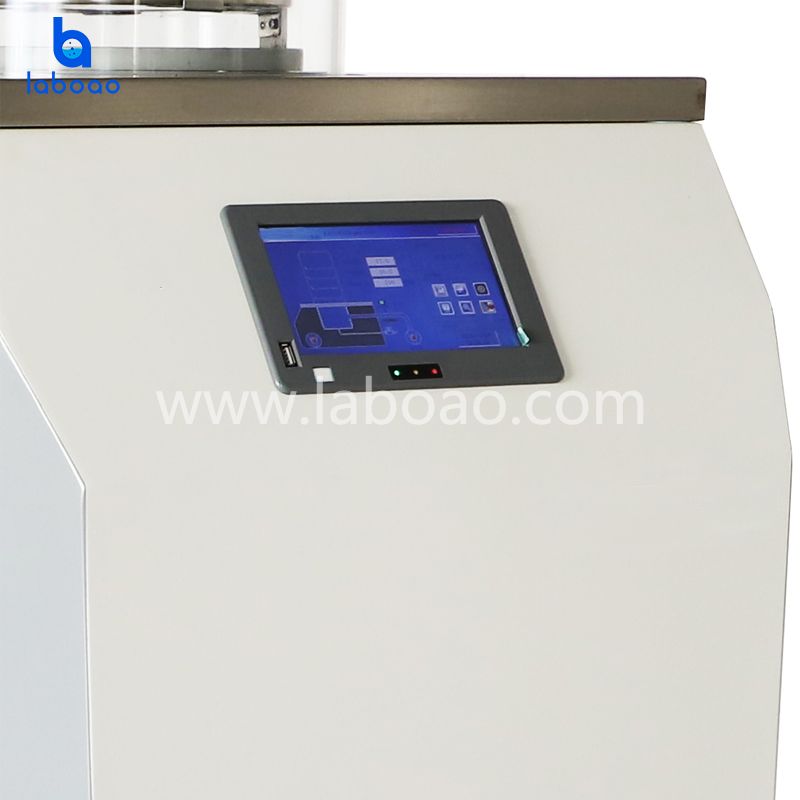

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.


SPECIFICATIONS

Model

LFD-18T

ampule   numbers

24pcs

cold   trap temp.

-60℃,optional-80

cold   trap depth

400mm

cold   trap dia.

Ф270mm

ice   collectiong capacity

6kg/24h

pumping   speed

4L/S

ultimate   speed

5pa

power

1400w

main   unit weight

105kg

main   unit dimension

630×580×970mm

-80 main unit dimensions

810×580×950mm

T   fram sizes

430×480mmH *L

flask   frame sizes

610×600mmH *L

cooling   mode

wind   cooled

defrosting   mode

by   air
