L101-DB Series Electric Forced Air Drying Oven

L101-DB Series Electric Forced Air Drying Oven L101-DB Series Electric Forced Air Drying Oven L101-DB Series Electric Forced Air Drying Oven
Electric thermostatic drying oven adopts electric heating method to carry out blast cycle drying test. The blast drying oven is to blow out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used to dry samples, and can also provide the temperature environment required for the experiment. Dry oven is used in various industries such as chemical, pharmaceutical, foundry, automobile, food, machinery and so on.
  • ModelL101-DB Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DETAILS

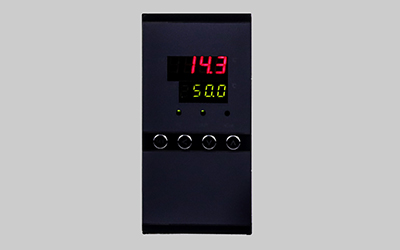

L101-DB Series Electric Forced Air Drying Oven detail - LCD Multi-function control panel
LCD Multi-function control panel
L101-DB Series Electric Forced Air Drying Oven detail - Vent
Vent

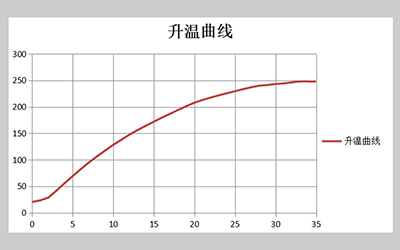

L101-DB Series Electric Forced Air Drying Oven detail - Heating curve
Heating curve

DESCRIPTION

This series of products adopts a horizontal box structure, which is small and easy to test and move. It is used for drying, baking, melting, disinfection and sterilization of non-flammable, non-explosive and non-volatile materials in industrial and mining enterprises, universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. The desktop blast drying oven adopts a hot air circulation system composed of a fan that can continuously operate at high temperatures and a special air duct, and the temperature in the working room is uniform. It is widely used for drying glassware, heat denaturation, heat hardening, heat softening, moisture removal of experimental samples, food and chemical substances, dry heat sterilization of utensils and utensils in bioengineering, and drying and aging of electronic components.

FEATURES

1. The horizontal air circulation structure is conducive to air mixing, high space utilization, and fast drying rate;

2. Convenient operation, fixed temperature operation, timing function, automatic stop;

3. Dedicated function keys for temperature setting;

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;

5. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life;

6. Anti-pinching door handle, convenient and flexible to open the door;

7. Tray-type partition design, convenient and quick to take and place samples;

8. Embossed stainless steel door bottom strip, easy to clean.

SPECIFICATIONS

Model

L101-0DB

L101-1DB

L101-2DB

L101-3DB

Cycle Mode

Forced   convection

Function

Temp. Range

RT+10-250

Temp. Resolution     Ratio

0.1

Temp. Motion

±1

Temp. Uniformity

±2.5%

Structure

Inner Chamber

DB model: High     quality stainless steel;

Outer Shell

Cold rolling     steel electrostatic spraying exterior

Thermal   insulation   material

Aluminum   silicate   fiber

Heater

Stainless steel     heating tube

Power rating

1.2kW

1.6kW

2.0kW

3.0kW

Exhaust hole

φ28mm*1;   Overhead   test hole

Controller

Temp. control     mode

Two temperature     section PID intelligent

Temp. setting     mode

Touch button     setting

Temp. display     mode

Two lines 4     digits LED Digital display:
  measuring temp.   on the top and setting temp. on the bottom

Timer

0-9999min(with     timing wait function)

Operation     function

Fixed   temperature   operation, timing function, auto stop.

Program mode

Optional

Additional     function

Deviation     correction, menu button lock, power failure compensation, power-off parameter     memory

Sensor

Pt100

Safety device

Over temperature     sound-light alarm

Specification

Inner Chamber     size(W*L*H)(mm)

350*350*350

450*350*450

550*450*550

600*500*750

Exterior size     (W*L*H)(mm)

652*528*580

752*520*676

852*572*776

861*669*995

Packing size     (W*L*H)(mm)

775*595*709

875*595*812

975*695*910

1020*804*1102

Volume

43L

71L

136L

225L

Shelf number

9

13

17

21

Load per rack

15kg

Shelf space

25mm

(50/60HZ)Current     rating

AC220V/5.5A

AC220V/7.3A

AC220V/9.1A

AC220V/18.2A

NW/GW (kg

33/37

40/50

62/68

77/96

Accessory

Shelf

2

Shelf frame

4

optional     accessories

Shelf, RS485     interface, printer, recorder, external communication, remote control,   program   temperature controller, wireless SMS alarm, U disk data   storage
