Desktop Electric Thermostatic Drying Oven

Desktop Electric Thermostatic Drying Oven Desktop Electric Thermostatic Drying Oven Desktop Electric Thermostatic Drying Oven Desktop Electric Thermostatic Drying Oven
It is suitable for bacterial cultivation, fermentation and constant temperature testing in scientific research and industrial production departments such as medical and health, pharmaceutical industry, biochemistry and agricultural science.
  • ModelLHL Series LWP Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DETAILS

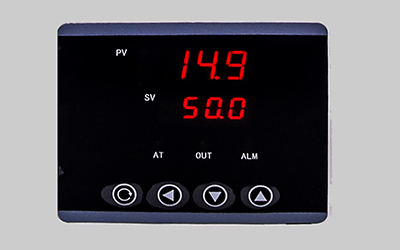

Desktop Electric Thermostatic Drying Oven detail - Multi-function control panel
Multi-function control panel

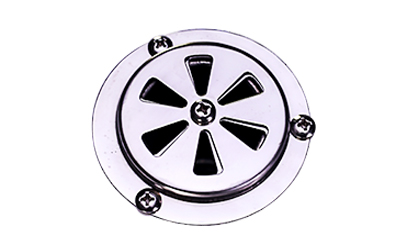

Desktop Electric Thermostatic Drying Oven detail - Vent
Vent

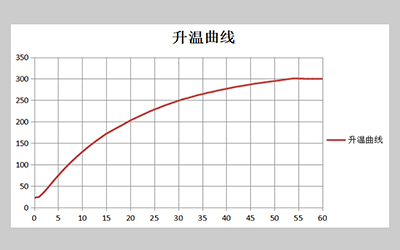

Desktop Electric Thermostatic Drying Oven detail - Heating curve
Heating curve


DESCRIPTION

LHL series desktop electric heating constant temperature drying oven has a cavity volume of 18L, natural convection mode, use temperature room temperature +5~300 degrees Celsius, PID precise temperature control temperature accuracy is +-3.5%..



LWP series desktop incubator has a cavity volume is 18L, natural convection mode, the operating temperature is room temperature +5~65 degrees Celsius, and the PID precision temperature control temperature accuracy is +-2.0%

FEATURES

1. Classic heat transfer method, uniform temperature distribution.

2. Double-layer tempered glass observation window, easy to check the experimental status at any time.

3. Convenient operation, fixed value operation, timing operation and automatic stop.

4. Dedicated function keys realize temperature setting.

5. The auxiliary menu can realize over-rise alarm, deviation correction, and menu lock.

6. Over-rise alarm, menu lock.

SPECIFICATIONS

Model

LHL-25A

/LHL-25AB

LWP-25A

/LWP-25AB

Mode

Natural convection



Performance

Temp. range

RT+10~300

RT+5~65

Temp. resolution

0.1

Temp. fluctuation

+-1

+-0.5

Temp. distribution

+-3.5%

+-2.0%

Constitution

Interior

A-type:high strength carbon steel plate

AB-type:stainless steel plate

Exterior

cold-rolled steel plate, surface coating with chemical resistance

Thermal insulation material

aluminum silicate fiber

Heater

Ni-Cr alloy heating wire OCr27AL7Mo2

Rated power

0.6kw

0.18kw

Exhaust port

I.D. 28mm*1, top

Controller

Temp control mode

digital tube dual-row PID

Temp setting method

Tap four buttons to set

Temp display method

Measuring temp display: 3-digit digital upper;

Set temp display: 3-digit digital lower

Timer

0-9999 minutes ((with timing wait function)

Running function

fixed value running, timing running, automatic stop

Program mode

optional

Additional functions

deviation correction, menu button lock, power failure compensation, power   failure memory

Sensor

Pt100

Safety device

Overheating alarm

SPEC

Internal dimensions

260*260*260(W*L*H)mm

External dimensions

376*464*548(W*L*H)mm

Outer packaging size

450*490*615(W*L*H)mm

Internal volume

18L

Partition bearing capacity

15kg

Partition layers

6 layers

Space between partitions

35mm

Power supply(50/60Hz)

rated current

AC220/2.7A

AC220/0.8A

Net weight/Gross weight

21/23 kg

Accessories

Partition

2 pieces

Configuration that can be added

Partition, RS485 interface, printer, recorder, external communication,   remote control, program temperature controller, wireless SMS alarm, U disk   data storage.
