LPL-DLT Series Heating Incubator For Laboratory

The precision constant temperature incubator scientific research departments to store strains, biological culture, and conduct scientific research.

ModelLPL-DLT Series
BrandLABOAO
PortAny port in China
PackagePlywood case package

INQUIRY EMAIL

Payment We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DETAILS

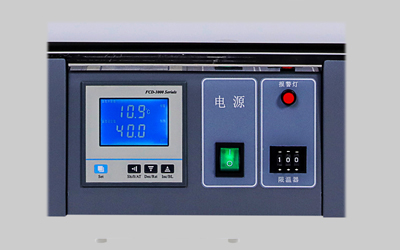

: Multi-function control panel

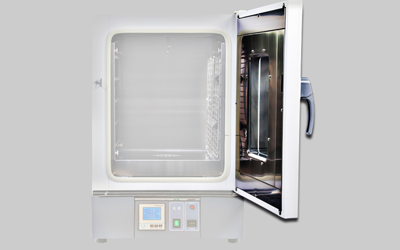

: Thickened safety door design

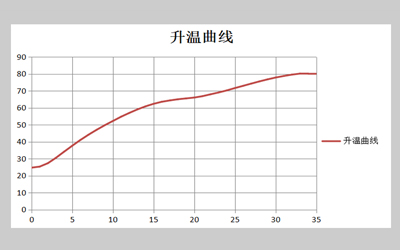

: Heating curve

DESCRIPTION

It is a necessary equipment for colleges, biology, agriculture, and scientific research departments to store strains, biological culture, and conduct scientific research.

FEATURES

1. High precision, high efficiency, safety, wide range

2. Vertical double duct air sleeve

3. Convenient operation, constant value operation, regular operation and automatic stop

4. Special function key to realize temperature setting

5. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

6. Forced air supply by centrifugal turbine makes the temperature more uniform

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan <50 ℃, long-term and long-life operation

8. Speed-regulating fan enables light, small and powdery samples to be used

9. Insulated door technology, the outer door has low temperature and does not deform when used under high temperature conditions

10. Pull-out tray partition design scheme, convenient and quick to take samples

SPECIFICATIONS

Model	Digital Liquid	LPL-30D	LPL-45D	LPL-65D	LPL-85D		LPL-125D	LPL-230D
	Standard type	LPL-30L	LPL-45L	LPL-65L	LPL-85L		LPL-125L	LPL-230L
	High matching	LPL-30T	LPL-45T	LPL-65T	LPL-85T		LPL-125T	LPL-230T
Internal circulation method		Double duct forced convection
Performance	Temperature control range	RT+10-80℃
	Temperature resolution	0.1℃
	Constant temperature fluctuation	±1℃
	Temperature uniformity	±1%
Constitute	Interior Material	stainless steel
	Exterior Material	Cold rolled steel sheet, surface coating
	Thermal insulation material	Aluminum silicate fiber
	Heater	Stainless steel heating pipe				Nickel-chromium alloy heating wire
	Rated power	0.15kw	0.25kw	0.50kw	0.55kw		0.6kw	0.7kw
	Exhaust vent	Inner diameter 28mm*1, located at the top
Controller	Temperature control mode	D: Digital tube dual-row PID; L: LCD dual-row PID; T: 5-inch color touch screen fuzzy PID
	Temperature setting mode	D/L: Touch four-button setting and touch screen input setting; T: touch screen setting
	Temperature representation	T:Measurement temperature display:Upper display on touch screen, set temperature display:lower display on touch screen
		D: Measurement temperature display: 4-digit upper display; set temperature display: 4-digit lower display
		L: Measurement temperature display: LCD upper display; set temperature display: LCD lower display
	Timer	0~9999min (with timing waiting function)
	Operation function	fixed value operation, timing operation, automatic stop
	Program mode	D/L is optional, T single-stage temperature control and program temperature control can be interchanged, 50 experimental programs can be stored, each program can be set with 50 steps, and each step can be set for 0-6000 minutes, adjustable
	Additional functions	Deviation correction, menu key locking, power failure compensation, power failure memory
	Sensor	PT100
Safety device		Over rise alarm ,type D optional,L、T standard
Specifications	Internal dimensions (mm)	310310310	350350350	400360450	450450450		500450550	600500750
	External Dimensions (mm)	428505710	468538753	518550860	567640853		617639953	7356251220
	Package size	552578840	592618880	642628980	692718980		7427181080	8988141347
	Internal volume	30L	45L	65L	85L		125L	230L
	Diaphragm bearing	15kg
	Number of shelves	5	6	8	8		11	17
	Shelf spacing	40mm
	Rated current	AC220V/3.6A	AC220V/5.5A	AC220V/7.2A	AC220V/8.2A		AC220V/10.5A	AC220V/13.6A
Configuration can be increased		Shelf, RS485 interface, printer, recorder, external communication, remote control, Program temperature controller, wireless SMS alarm, U disk data storage
