Ethanol Alcohol Extraction Centrifuge System
LCE-E series centrifuge is specially designed for plant extraction, and have the functions of airtight, explosion-proof, clean and mobile. LCE-E series centrifuge adopts flat-bottomed drum structure, which has larger volume, higher cleanliness, and non-polluting structure design. With simple operation, clean appearance, stable and excellent performance, it is liked by consumers.
- ModelLCE-E Series
- BrandLABOAO
- PortAny port in China
- PackagePlywood case package
Payment
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
DETAILS

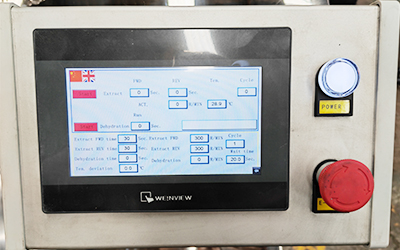

- Control touch screen with PLC program and temperature measuring device, the real-time temperature can be displayed on the display.
- Fully transparent explosion-proof sight glass, the material handling process can be clearly seen during the extraction process.

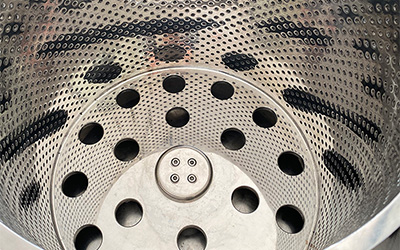

- S316 stainless steel centrifugal perforated drum, the overall appearance is beautiful, and the material is dried more evenly

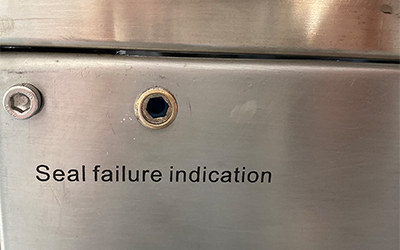

- 4 layer silicone seal with leak indication, new structure for easy replacement.
- Alarm lamp device, higher safety. (fault warning, overload warning, etc.)

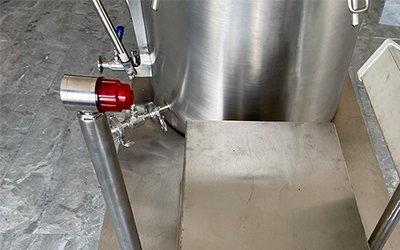

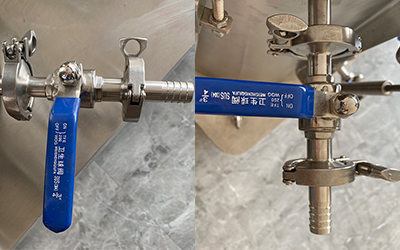

- The liquid inlet, liquid outlet, pressure relief valve, coolant inlet and outlet, pressure gauge, etc. can all be quickly installed and disassembled.
DESCRIPTION
The LEC-E Series solvent extraction system possesses 97% alcohol removal from biomass and designed to maximize extraction yield. The Hamho LEC-E Series are made with food-grade stainless steel for smooth operation and maintaining exceptional performance. The uniquely designed flat-bottom drum to streamline production times and reduce your operation cost.
Compared with the traditional discharge centrifuge, The machine adopts a closed structure, and the seal is sealed with ptfe; the explosion-proof motor, frequency converter, PLC, touch screen and other devices can be used to achieve the sealed explosion-proof requirements.
FEATURES
1. Low temperature acceptable -50℃ to 50℃
2. Model 15,30 and 50 are all transparent explosion-proof glass clamshell structure, clearly check the equipment.
3. Automatic extraction process, the program can set the drum positive and negative rotation speed, time and cycle times, and can switch to manual control.
4. Dehydration speed and time can be set.
5. Temperature display.Vacuum pressure display.
6. The bottom is provided with leakage indication port, if any leakage can be found in time.
7. Zipper filter bag for quick loading and unloading.Designed for solo operation.
SPECIFICATIONS
Model | Capacity for dry material(lbs/batch*) | Speed(r/min) | Motor power(KW) | Packed size(mm) | Packed weight(KG) |
LEC-15E | 15 | 2000 | 1.5 | 1100*600*1300 | 330 |
LEC-30E | 30 | 1500 | 4 | 1600*800*1400 | 520 |
LEC-50E | 50 | 1250 | 5.5 | 1800*1060*1450 | 850 |
LEC-100E | 100 | 1100 | 7.5 | 1700*1400*1500 | 1350 |
LEC-150E | 150 | 1000 | 11 | 1900*1550*1700 | 2000 |
LEC-200E | 200 | 900 | 15 | 2300*1750*1950 | 2600 |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of centrifugal extractor machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
